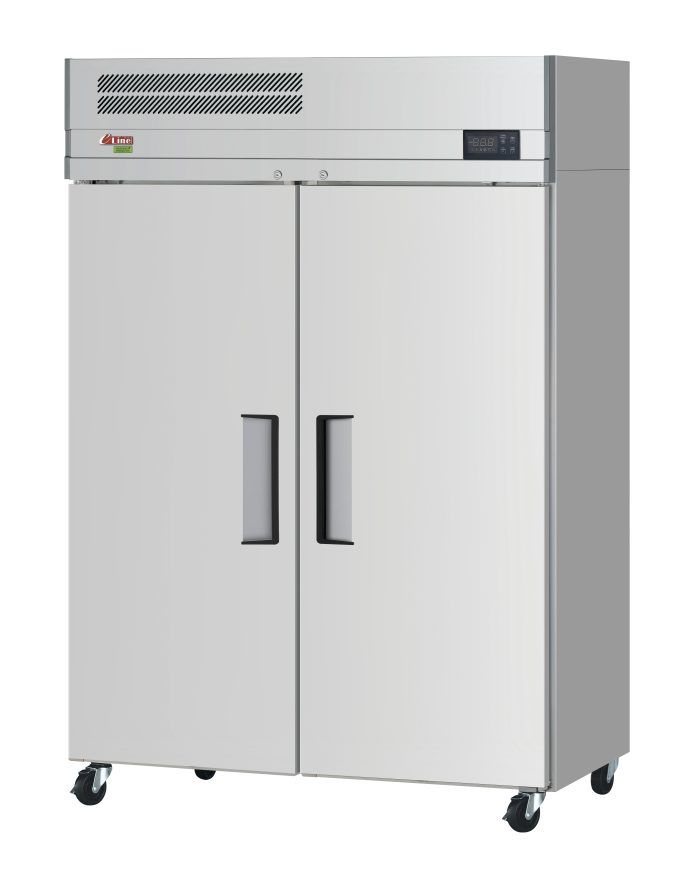

EF47-2-N-V

Key Features

E-line Freezer, Reach-in, two section, (2) solid doors, (6) PE wire shelves, Hot gas condensate system, AL exterior with stainless steel interior, LED interior lighting, High-density polyurethane insulation, Self-contained system, Door locks standard, Top mount compressor, Ecofriendly refrigerants R-290, 115/60/1, NEMA 5-15P, 6.3 amp, 5/8 HP, 42.1 cu. ft.

Warranty

  • 2 Year Parts & Labor
  • Additional 3 Year Compressor

Documents

new-message Features

Digital temperature control & monitor system
• Keep food products safe by maintaining constant temperatures.
• Alarms that sound when doors are not sealed shut; protect against food spoilage that originates from cold air leaks.
• Early warning alarm program detects issues before malfunction occurs.
• Digital display allows for easy monitoring.
• Programs interpret the condition of refrigeration systems by self-diagnosis.
• Rapid cool-down function (Turbo Freeze).
• Automatic evaporator fan motor delays.

Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocar-bon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Cabinet construction
E-Line series model boasts a stainless steel exterior (door) with AL exterior sides (galvanized steel top, bottom, and back). Interior has a stainless steel bottom with AL interior (walls, door liners, and top duct).

LED interior lighting

Adjustable, heavy duty, PE (polyethylene) coated wire shelves

High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.

Self-contained system

Standard 4” dia. swivel casters with locks on the front set

Door locks standard

Solid and sturdy grille design

Top mount compressor

Anti-corrosion coated evaporator standard feature

Freezer holds -10°F ~ 0°F for the best in frozen food preservation

Standard Features
• Self-contained system
• Standard 4” dia. swivel casters with locks on the front set
• Door locks standard
• Magnetic door gaskets
• Solid and sturdy grille design



Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and
Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, go to www.p65warnings.ca.gov.

nuts Parts & Accessories

Optional Accessories
• 5” caster, ½” diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
• 6” stainless steel leg: 30221M0600
• Additional PE coated wire shelf: G8F1800101
• Half door bun tray rack: TSP-2224 (each holds up to six 18”L x 26”D sheet pans)
• Full door bun tray rack: TSP-2250 (each holds up to fifteen 18”L x 26”D sheet pans)
