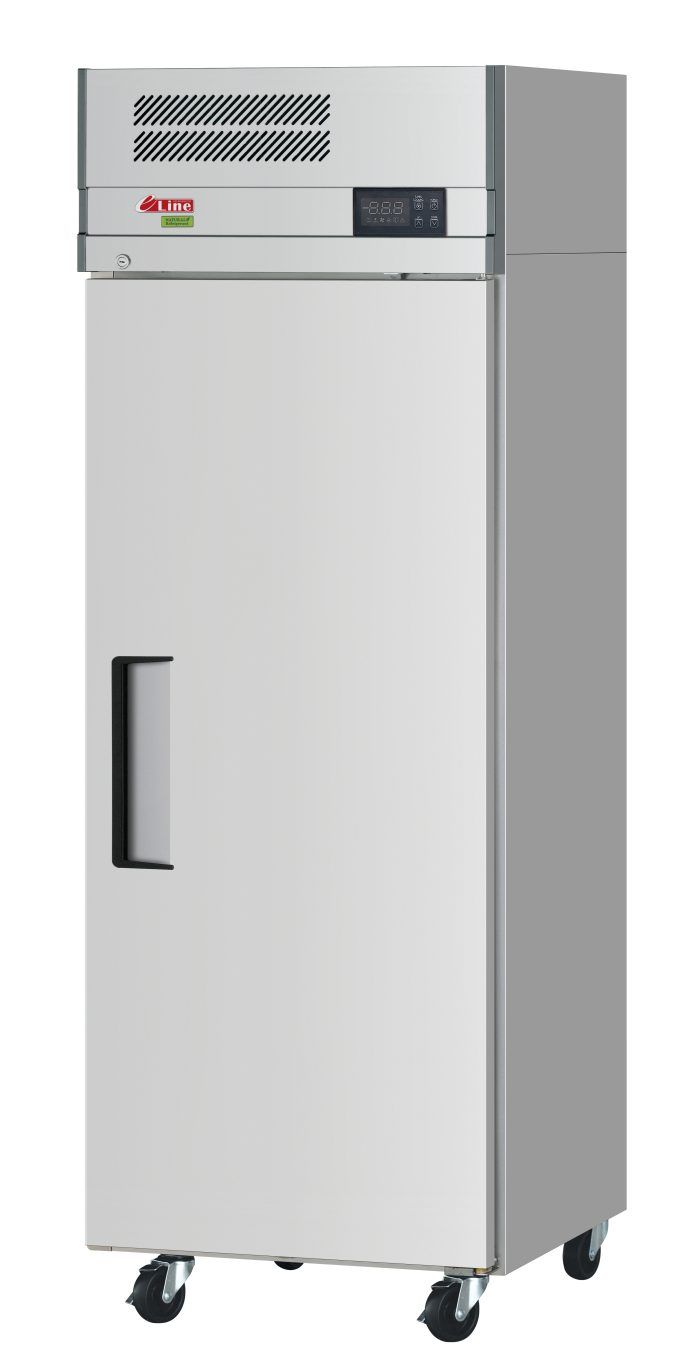

ER24-1-N6-V

Key Features

E-line series, Reach-in, Refrigerator, 1 Solid door, Digital temperature control & monitor system, Hydrocarbon refrigerants (R-600a), Hot gas condensate system, Stainless steel exterior (door and top grille) with AL exterior (galvanized steel top, bottom, and back), Stainless steel interior bottom with AL interior (walls, door liners, and top duct). High-density polyurethane insulation, LED interior lighting, Adjustable PE coated wire shelves, Self-contained system, 115V/60/1, NEMA 5-15P, 1.5 Amp, 1/8 HP, 21.9 cu. ft., ETL, cETLus

Warranty

  • 2 Year Parts & Labor
  • Additional 3 Year Compressor

Documents

new-message Features

Digital temperature control & monitor system
• Keep food products safe by maintaining constant temperatures.
• Alarms that sound when doors are not sealed shut; protect against food spoilage that originates from cold air leaks.
• Early warning alarm program detects issues before malfunction occurs.
• Digital display allows for easy monitoring.
• Programs interpret the condition of refrigeration systems by self-diagnosis.
• Rapid cool-down function (Turbo Cooling).
• Automatic evaporator fan motor delays.

Hydrocarbon refrigerants (R-600a)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Hot gas condensate system
Through Turbo Air’s creative innovation, the condensate system surfaces have been specially treated to resist corrosion. This not only increases efficiency without the risk of refrigerant leakage from corrosion, but also prevents the overflow of condensate water.

Cabinet construction
E-Line series model boasts a stainless steel exterior (door) with AL exterior sides (galvanized steel top, bottom, and back). Interior has a stainless steel bottom with AL interior (walls, door liners, and top duct).

LED interior lighting

Adjustable, heavy duty, PE (polyethylene) coated wire shelves

High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.

Self-contained system

Standard 4” dia. swivel casters with locks on the front set

Door locks standard

Solid and sturdy grille design

Top mount compressor

Anti-corrosion coated evaporator standard feature

Refrigerator holds 33°F ~ 38°F for the best in food preservation

Standard Features
• Self-contained system
• Standard 4” dia. swivel casters with locks on the front set
• Door locks standard
• Magnetic door gaskets
• Solid and sturdy grille design



Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and
Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, go to www.p65warnings.ca.gov.

nuts Parts & Accessories

Optional Accessories
• 5” caster, ½” diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
• 6” stainless steel leg: 30221M0600
• Additional PE coated wire shelf: G2F0800100
• Half door bun tray rack: TSP-2224 (each holds up to six 18”L x 26”D sheet pans)
• Full door bun tray rack: TSP-2250 (each holds up to fifteen 18”L x 26”D sheet pans)
