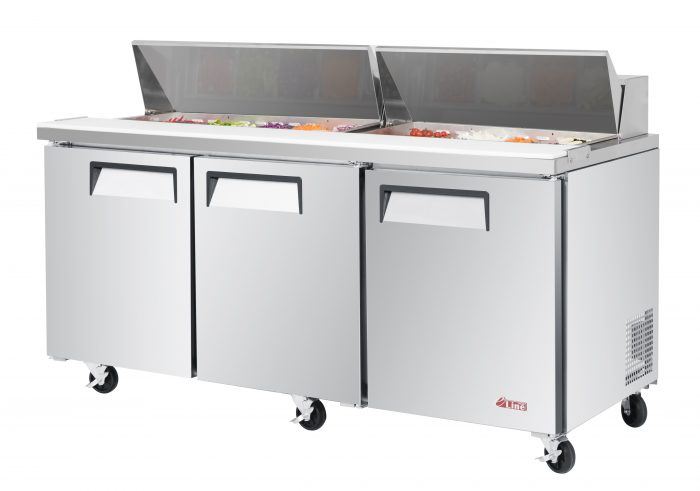

EST-72-N-V
Key Features
E-line Sandwich/Salad Unit, three section, 72-5/8″W x 30″D x 37-1/2″H, 19 cu. ft., self-contained refrigeration, (3) solid doors, (3) adjustable PE coated wire shelves, (18) 1/6 size x 4″ deep pan capacity, (2) hoods, cold air compartment, 9-1/2″ deep cutting board with side rail, stainless steel doors, aluminum exterior (galvanized steel back & bottom), casters, R290 Hydrocarbon refrigerant, 3/8 HP, 115v/60/1-ph, 5.5 amps, cord with NEMA 5-15P, cETLus, ETL-Sanitation (Contact sales for lead time)
Warranty
- 2 Year Parts & Labor
- Additional 3 Year Compressor
Documents
Features
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Cold air compartment
Our innovative “Cold Air Compartment” maintains temperature evenly for each pan to preserve fresh food longer. In addition, the compartment isolates pans from the reach-in area to prevent food spillage.
Cabinet construction
E-line model boasts a stainless steel exterior (door) with AL exterior sides (galvanized steel back and bottom). Interior is stainless steel floor and back with AL sides. It guarantees the utmost in cleanliness and long product life.
High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.
Convenient cutting board side rail
Self-contained system
4” dia. swivel casters with locks on the front set
1/6 size, 4” deep condiment pans included
9-1/2” deep, ½” thick cutting board included
Adjustable, heavy duty, PE (polyethylene) coated wire shelves
Refrigerator holds 33°F ~ 39°F for the best in food preservation
Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
Parts & Accessories
OPTIONAL ACCESSORIES
• 1” caster, ½” diameter & 13 TPI: S28R813660 (non-brake)
• 2.5” caster, ½” diameter & 13 TPI: 30265H0100 (non-brake), 30265H0200 (w/ brake)
• 5” caster, ½” diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
• Leveling leg, ½” – 13 TPI x 1.54”: LFM1213566
• 6” ABS plastic leg: 30221M0200
• 6” stainless steel leg: 30221M0600
• Removable food cover: RCT-72-L (Left) / RCT-72-R (Right)
• Single overshelf, stainless steel, 72-13/16” W: TSOS-6S
• Double overshelf, stainless steel, 72-3/4″ W: TSOS-6R-T
• Additional PE coated wire shelf: WM77800100 (Left/Right), WM77800300 (Middle)
• Clear Lid: CL-72
