M3R24-1-G-N

Key Features

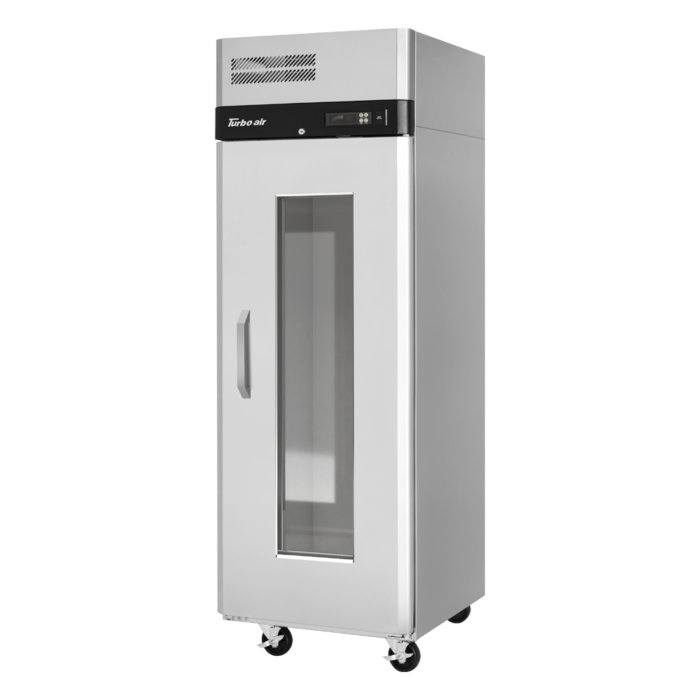

M3 Refrigerator, reach-in, one-section, 23 cu. ft. capacity, 28-3/4″W x 30-3/4″D x 78″H (1) locking hinged glass door, self-cleaning condenser equipped, digital temperature control & monitor system, hot gas condensate system, LED interior lighting, (3) adjustable PE coated wire shelves, insulated, top mounted self-contained compressor, R290 Hydrocarbon refrigerant, stainless steel front & sides (galvanized steel top, bottom & back), aluminum interior with stainless steel floor, 1/4+ HP, 115v/60/1-ph, 2.5 amps, NEMA 5-15P, cETLus, ETL-Sanitation (contact factory for lead time)

Warranty

  • 5 Year Parts & Labor
  • 7 Year Compressor Warranty

Documents

new-message Features

Self-cleaning condenser
The accumulation of dust in the condenser causes the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The self-cleaning condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.

Digital temperature control & monitor system
• Keeps food products safe by maintaining constant temperatures
• Alarms that sound when doors are not sealed shut; protect against food spoilage that originate from cold air leaks
• Early warning alarm program detects issues before malfunction occurs
• Digital display allows for easy monitoring
• Programs interpret the condition of refrigeration systems by self-diagnosis
• Rapid cool-down function (Turbo cooling)
• Automatic evaporator fan motor delays

Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Hot gas condensate system
Through Turbo Air’s creative innovation, the condensate system surfaces have been specially treated to resist corrosion. This not only increases efficiency without the risk of refrigerant leakage from corrosion, but also prevents the overflow of condensate water.

Stainless steel exterior
The Turbo Air M3 refrigerator model boasts a stainless steel exterior (galvanized steel top, bottom and back) and AL interior with stainless steel floor. It guarantees the utmost in cleanliness and long product life. Sharp corners and edges have been rounded to reduce the risk of injury. The M3 can add a touch of style to the most refined setting.

High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.

Stainless steel door with glass window

LED interior lighting

Adjustable, heavy duty, PE(polyethylene) coated wire shelves

Top mount compressor

Refrigerator holds 33°F ~ 38°F for the best in food preservation

• M3R24-1-G-N: Right hinged
• M3R24-1-G-N-L: Left hinged

STANDARD FEATURES
• Anti-corrosion coated evaporator
• Self-contained system
• 4″ dia. swivel casters with locks on the front set
• Door locks
• Magnetic door gaskets
• Solid and sturdy grille design
** Lead time applies. Please contact your sales representative for more details to order.

Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

nuts Parts & Accessories

OPTIONAL ACCESSORIES
• 5″ caster, ½” diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
• 6″ stainless steel leg: 30221M0600
• Additional PE coated wire shelf: G2F0800100
• Half door bun tray rack: TSP-2224 (each holds up to six 18″L x 26″D sheet pans)
• Full door bun tray rack: TSP-2250 (each holds up to fifteen 18″L x 26″D sheet pans)
