M3R72-6-N

Key Features

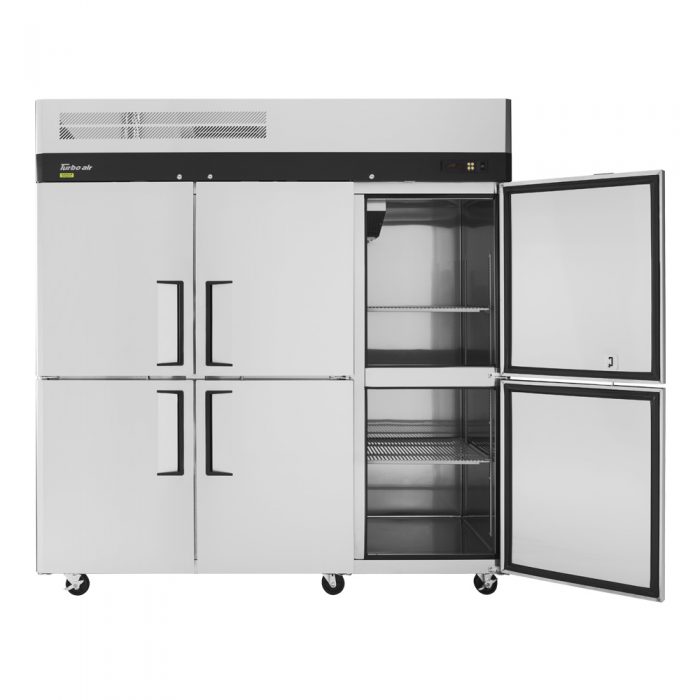

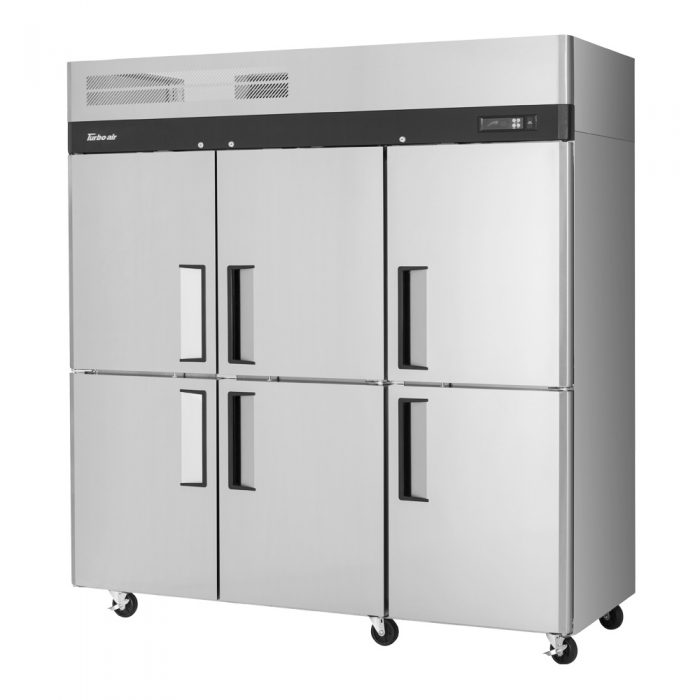

M3 Refrigerator, reach-in, three-section, 65.6 cu. ft., 77-3/4″W x 30-3/4″D x 78″H, top mount self-contained refrigeration, self-cleaning condenser device, (6) half hinged solid pressure release doors with recessed handle & lock, LED interior lighting, (9) PE coated wire shelves, digital temperature control, audible alarm, self-diagnostic monitoring system, hot gas condensate system, stainless steel front & sides (galvanized steel top, bottom & back), aluminum interior with stainless steel floor, R290 Hydrocarbon refrigerant, 3/8 HP, 115v/60/1-ph, 5.6 amps, NEMA 5-15P, ETL-Sanitation, cETLus

Warranty

  • 5 Year Parts & Labor
  • 7 Year Compressor Warranty

Documents

new-message Features

Self-cleaning condenser
The accumulation of dust in the condenser causes the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The self-cleaning condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.

Digital temperature control & monitor system
• Keeps food products safe by maintaining constant temperatures.
• Alarms that sound when doors are not sealed shut; protect against food spoilage that originate from cold air leaks.
• Early warning alarm program that detects issues before malfunction occurs.
• Digital display allows for easy monitoring.
• Programs interpret the condition of refrigeration systems by self-diagnosis.
• Rapid cool-down function (Turbo cooling).
• Automatic evaporator fan motor delays.

Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Hot gas condensate system
Through Turbo Air’s creative innovation, the condensate system surfaces have been specially treated to resist corrosion. This not only increases efficiency without the risk of refrigerant leakage from corrosion, but also prevents the overflow of condensate water.

Stainless steel exterior
The Turbo Air M3 refrigerator model boasts a stainless steel exterior (galvanized steel top, bottom and back) and AL interior with stainless steel floor. It guarantees the utmost in cleanliness and long product life. The sharp corners and edges have been rounded to reduce the risk of injury. The M3 can add a touch of style to the most refined setting.

Door pressure release device
Pressure relief doors are designed to eliminates vacuum pressure and allows easy, instant door opening.

High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.

LED interior lighting

Adjustable, heavy duty, PE(polyethylene) coated wire shelves

Top mount compressor

Refrigerator holds 33°F ~ 38°F for the best in food preservation

STANDARD FEATURES
• Anti-corrosion coated evaporator
• Self-contained system
• 4″ dia. swivel casters with locks on the front set
• Door locks
• Magnetic door gaskets
• Solid and sturdy grille design

Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

nuts Parts & Accessories

OPTIONAL ACCESSORIES
• 5″ caster, ½” diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
• 6″ stainless steel leg: 30221M0600
• Additional PE coated wire shelf: G8F1800101 (Left/Right), G8F1800201 (Middle)
• Half door bun tray rack: TSP-2224 (each holds up to six 18″L x 26″D sheet pans)
• Full door bun tray rack: TSP-2250 (each holds up to fifteen 18″L x 26″D sheet pans)
