M3RF45-2-N

Key Features

M3 Series, Reach-in dual temperature, Two-section, Self-Cleaning Condenser equipped, Self-contained, 15 cu. ft (F), 20.93 cu. ft (R). Exterior LED digital thermometer, Door open beep, Self-diagnostic monitoring system, Hot gas condensate system, Automatic evaporator fan motor delays, Door pressure release, LED interior lighting, (4) half hinged solid door with recessed handle & lock, (6) PE coated wire shelves, Stainless steel front & sides, Aluminum interior with stainless steel floor, 4″ swivel casters, Top mount compressor, 1/3 HP (F), 1/4 HP (R), 115v/60/1, 6 Amps, NEMA 5-15P, ETL-Sanitation, CQC

Warranty

  • 5 Year Parts & Labor
  • 7 Year Compressor Warranty

Documents

new-message Features

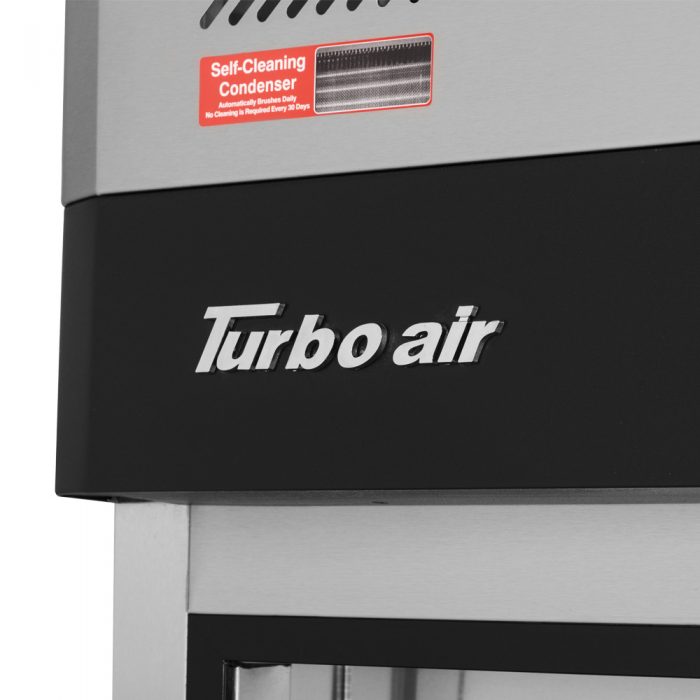

Self-cleaning condenser
The accumulation of dust in the condenser causes the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The self-cleaning condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.

Digital temperature control & monitor system
• Keeps food products safe by maintaining constant temperatures.
• Alarms that sound when doors are not sealed shut; protect against food spoilage that originate from cold air leaks.
• Early warning alarm program detects issues before malfunction occurs
• Digital display allows for easy monitoring.
• Programs interpret the condition of refrigeration systems by self-diagnosis.
• Rapid cool-down function (Turbo cooling & Turbo freeze).
• Smart defrost system will defrost as needed

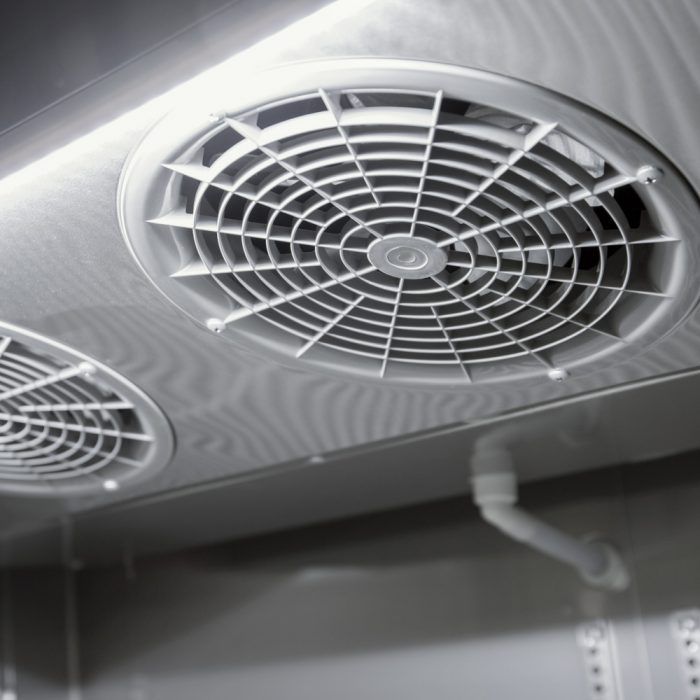

• Automatic evaporator fan motor delays.

Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Hot gas condensate system
Through Turbo Air’s creative innovation, the condensate system surfaces have been specially treated to resist corrosion. This not increases efficiency without the risk of refrigerant leakage from corrosion, but also throughly prevents the overflow of condensate water.

Stainless steel exterior
The Turbo Air M3 refrigerator model boasts a stainless steel exterior (galvanized steel top, bottom and back) and AL interior with stainless steel floor. It guarantees the utmost in cleanliness and long product life. Sharp corners and edges have been rounded to reduce the risk of injury. The M3 adds a touch of style to the most refined setting.

Two separate refrigeration systems
The M3 series dual temp. model is designed with two separate compressors for refrigerator & freezer. The single section model is built as a refrigerator on the top half and as a freezer on the bottom half. The two section model is built as a freezer on the left 35% and as a refrigerator on the right 65%.

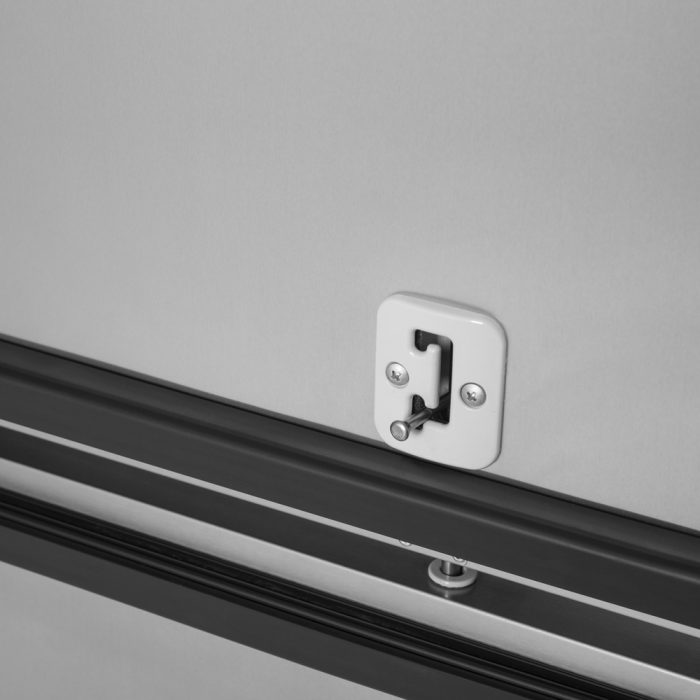

Door pressure release device
Pressure relief doors are designed to eliminate vacuum pressure and allow easy door opening.

High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.

Adjustable, heavy duty, PE(polyethylene) coated wire shelves

Refrigerator holds 33°F ~ 38°F, and freezer holds -10°F ~ 0°F for the best in food preservation

STANDARD FEATURES
• Anti-corrosion coated evaporator
• Self-contained system
• 4″ dia. swivel casters with locks on the front set

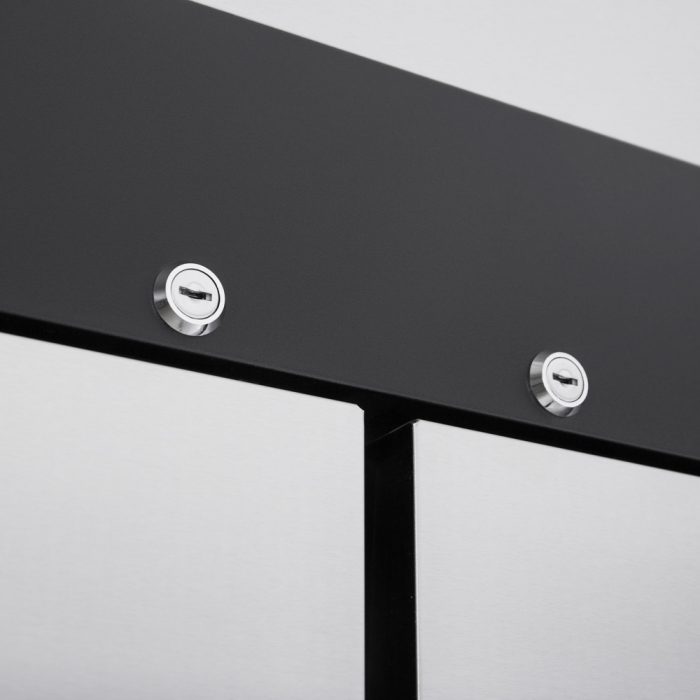

• Door locks
• Solid and sturdy grille design
• LED interior lighting

Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

nuts Parts & Accessories

OPTIONAL ACCESSORIES
• 5″ caster, ½” diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
• 6″ stainless steel leg: 30221M0600
• Additional PE coated wire shelf: K2D9000102 (L), K2D9000202 (R)
