PRCBE-48R-N
Key Features

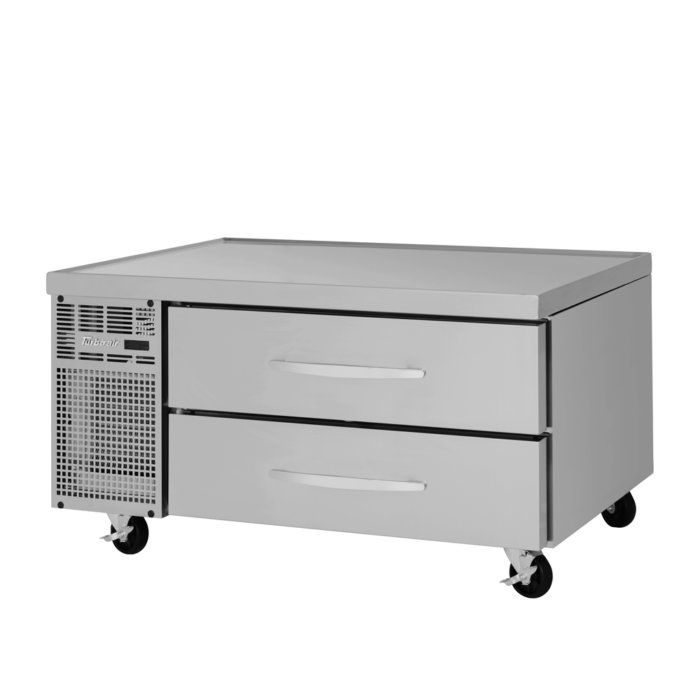

PRO Series Refrigerated Chef Base, one-section, 48″L x 33-1/2″D x 21-3/8″H, 6.83 cu. ft., (2) stainless steel drawers, accommodates pans up to 6″ deep, capacity: (2) full size pans per drawer (NOT included), digital temperature display, stainless steel top, full marine drip guard edge, front air intake, self-cleaning condenser, hot gas condensate system, side mount self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 3.2 amps, NEMA 5-15P, ETL-Sanitation, cETLus
Warranty
- 3 Year Parts & Labor
- Additional 4 Year Compressor
Documents
Features
Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products inside. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Strong body and durable construction
Built with heavy duty 16 ga. stainless steel, Chef Base top is manufactured of one-piece reinforced stainless steel to ensure durability.
Countertops
PRCBE-48/60R-N supports up to 788 pounds of equipment.
PRCBE-72/84R-N supports up to 1,192 pounds of equipment.
Side mount compressor unit
Compressors positioned on the side of the units makes servicing our units easy. Our front air intake feature also allows this model to be highly efficient in narrow spaces.
High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.
Digital temperature display on front panel
Each drawer accommodates up to two (2) full size pans (drawer pans not included)
Durable stainless steel drawers
Top is insulated to eliminate heat transfer to the interior of cabinet
Stainless steel top with Drip Guard (marine) edge
Hot gas condensate system
Full length drawer with gasket guard
Condensing unit left or right
Drawer slider load capacity up to 180 lbs
Magnetic snap-in gasket
Refrigerator holds 33°F ~ 38°F for the best in food preservation
STANDARD FEATURES
• Anti-corrosion coated evaporator
• Self-contained system
• 4” dia. swivel casters standard
Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
Parts & Accessories
OPTIONAL ACCESSORIES
• 1” caster, ½” diameter & 13 TPI: S28R813660 (non-brake)
• 2.5” caster, ½” diameter & 13 TPI: 30265H0100 (non-brake), 30265H0200 (w/ brake)
• 5” caster, ½” diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
• Leveling leg, ½” – 13 TPI x 1.54”: LFM1213566
• 6” ABS plastic leg: 30221M0200
• 6” stainless steel leg: 30221M0600
• Condensing unit on the right: extra lead time applies. Please contact your sales representative for more details to order.
