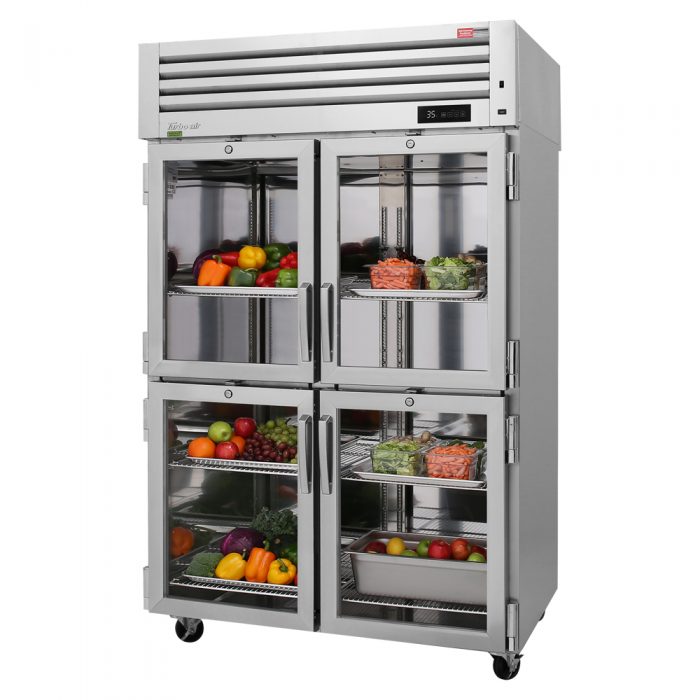

PRO Series Pass Thru Refrigerator, 4 Half Glass Front Door / 4 Half Solid Back Door Pass-Thru, Top Mount Ref., Maintains 33~38℉ in 100℉ ambient, 22 gauge stainless steel exterior and stainless steel interior with galvanized steel bottom, (8) door with lifetime guaranteed heavy duty hinges and handles, (6) stainless steel shelf, Self-cleaning condenser equipped, LED interior lighting, Digital temperature control & monitor system, 5″ caster, Hydrocarbon Refrigerant R-290, 1/2 HP, 8 Amp, 115v/60/1, NEMA 5-15P, ETL, CETLUS, MADE IN USA
- 3 Year Parts & Labor
- Additional 4 Year Compressor
A fine mesh filter catches dust, while rotating brushes run daily to move dirt away from the condenser. This revolutionary device comes at no additional cost.
All Stainless Steel
The PRO Series boasts a stainless steel interior and a 22 gauge stainless steel exterior (galvanized steel top, bottom).
Touchscreen Digital Temperature Control & Monitor System
When doors are not sealed shut, alarm sounds to notify user. Early warning alarm program detects issues before malfunction occurs. Turbo Cooling or Turbo Freeze functions allow you to instantly drop the temperature of the unit with the press of a button.
Made In USA
At the foundation of our products is all-American, quality craftsmanship. Turbo Air continues to create equal opportunities for Americans with our Texas-based factory and 13 branches across the United States.
LED Interior Lighting
LED array lights every corner to make finding the right ingredients quick and simple.
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products inside. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Digital temperature control & monitor system
• Keep food products safe by maintaining constant temperatures.
• Alarms that sound when doors are not sealed shut; protect against food spoilage that originates from cold air leaks.
• Early warning alarm program detects issues before malfunction occurs.
• Digital display allows for easy monitoring.
• Programs interpret the condition of refrigeration systems by self-diagnosis.
• Rapid cool-down function (Turbo cooling).
• Automatic evaporator fan motor delays.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Cold air distribution system
Provides uniformly maintained temperature within the food zone.
Hot gas condensate system
Through Turbo Air’s creative innovation, the condensate system surfaces have been specially treated to resist corrosion. This not only increases efficiency without the risk of refrigerant leakage from corrosion, but also prevents the overflow of condensate water.
All stainless steel cabinet construction
The PRO series model boasts a stainless steel interior and a 22 gauge stainless steel exterior (galvanized steel top, bottom). It guarantees the utmost in cleanliness and long product life. The PRO series model adds a touch of style to the most refined setting.
Sturdy, clean stainless steel shelving
Shelves are the most important part of cleanliness as they come in direct contact with food. After a while, PVC coated wire shelves may peel, rust and lead to unsanitary conditions. Only the Turbo Air PRO series uniquely provides stainless steel shelving.
High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.
USB temperature data storage
Plug in a USB flash drive into the built-in USB port to store raw temperature data while the unit is operating. Raw data can be processed via Turbo Air’s website, which plots it on a convenient date and time versus temperature graph. Owners can analyze their unit’s performance to ensure stable temperatures during peak usage and detect any temperature anomalies.
Thermostatic expansion valve
LED interior lighting
Refrigerator holds 33°F ~ 38°F for the best in food preservation
Lifetime guaranteed heavy duty hinges and handles
Built to maintain NSF standard temperatures in 100°F ambient
• Anti-corrosion coated evaporator
• Door locks standard
• Self-contained system
• Standard 4” dia. swivel casters with locks on the front set
• Easy replaceable one piece magnetic door gaskets
• Solid and sturdy grille design
• Top mount compressor
** Lead time applies. Please contact your sales representative for more details to order.
Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
Parts & Accessories
• 5” caster, 1/2” diameter & 13 TPI:
M726500100 (non-brake), M726500200 (w/ brake)
• 4.7” leveling seismic leg (1/2”, 13 TPI): 30221M0500
• 6” stainless steel leg: 30221M0600
• Additional stainless steel shelf: (L) H50R901690,
• Half door bun tray rack: TSP-2224
(each holds up to six 18”L x 26”D sheet pans-sold separately)
• Tray slides kits: TS23-N1LR(#1), TS23-N1LR HALF, TS23-N4LR(#4), TS23-N4LR HALF, TS23-UNLR(Universal), TS23-UNLR HALF
• (1) Pair of #1 Tray Slides: H26R104460
• (1) Pair of Universal Tray Slides: H26R104470
