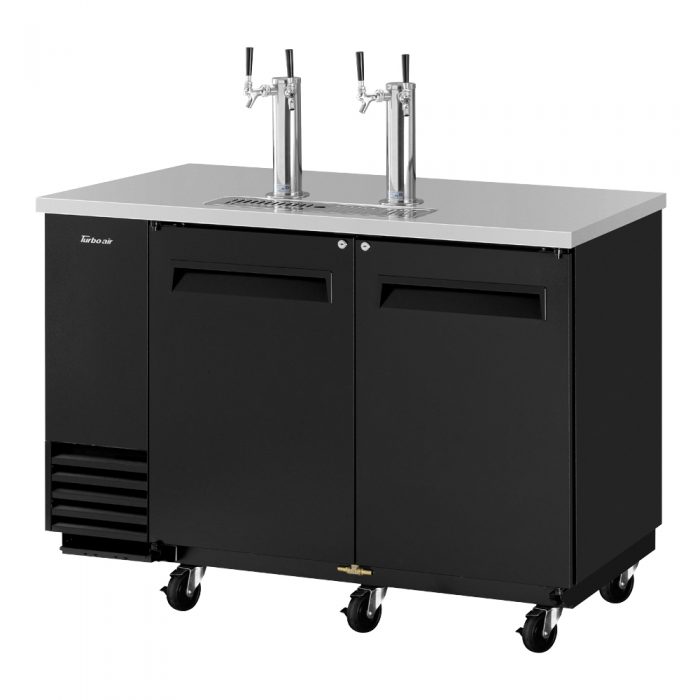

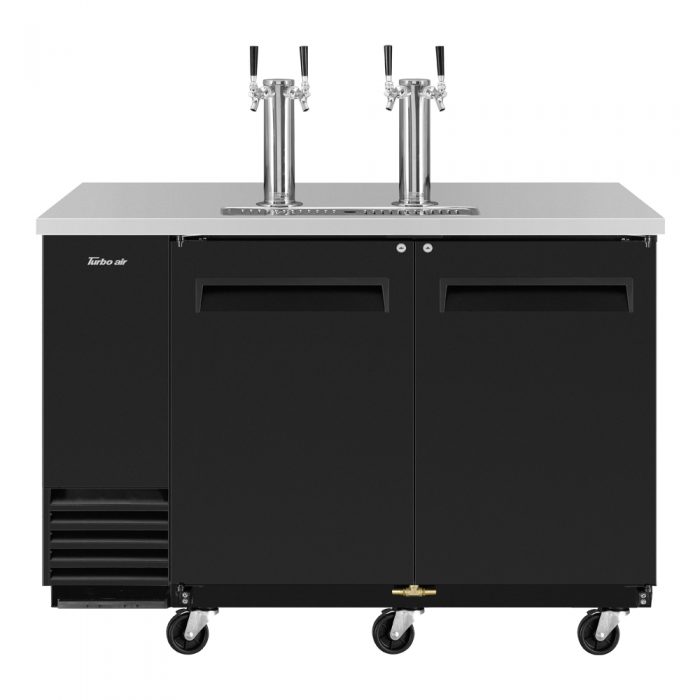

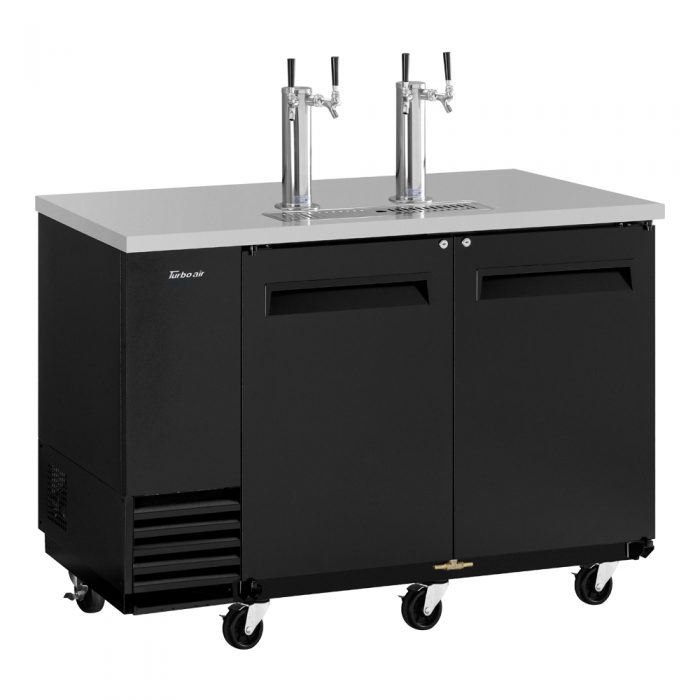

TBD-2SB-N6

Key Features

Super Deluxe beer dispenser, Self-cleaning condenser equipped, Black vinyl exterior and stainless steel interior except galvanized steel top, (2) swing door, Four-way tapper manifold, 3″ dia. stainless steel insulated beer tower, Self-contained system, Forced air cooling system, Door lock standard, Anti-corrosion coated evaporator, 4″ dia. swivel casters, (2) 1/2 barrels capacity, 115v/60/1, NEMA 5-15P, 1.9 Amps, 1/5 HP, ETL-Sanitation, cETLus

Warranty

  • 3 Year Parts & Labor
  • Additional 4 Year Compressor

Documents

new-message Features

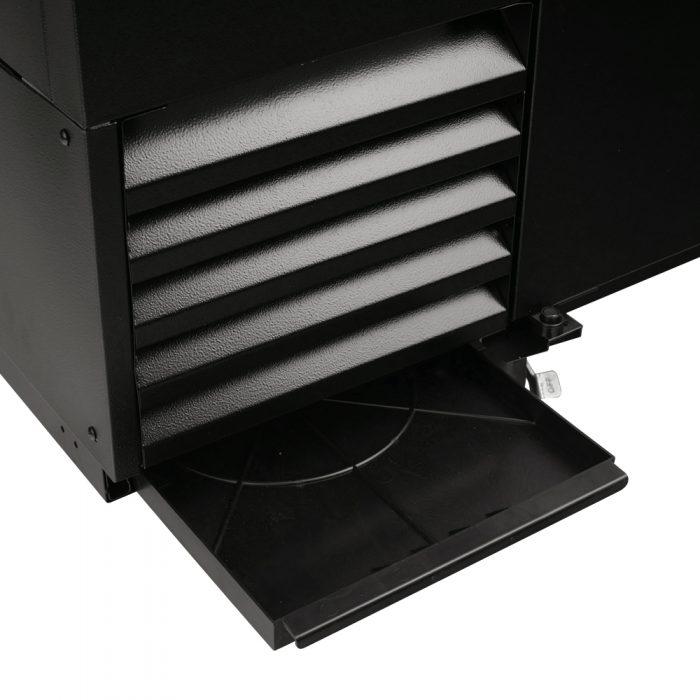

Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products inside. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.

Hydrocarbon refrigerants (R-600a)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Stainless steel cabinet construction

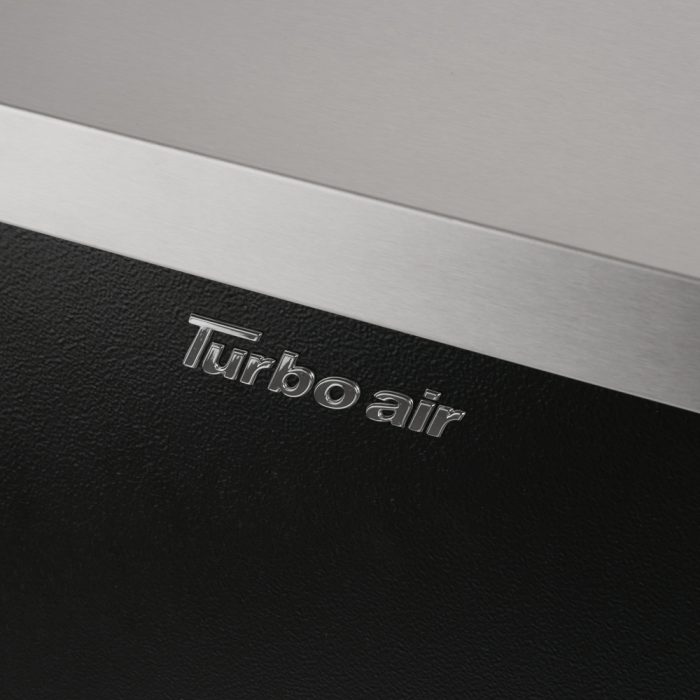

Super deluxe (SD) models boast a stainless steel exterior (except galvanized steel back and bottom). SB models have an attractive wear-resistant black vinyl exterior. Heavy gauge stainless steel countertop is perfect for sanitation and durability. Interior is stainless steel except galvanized steel top. Spacious inside construction with 32″ inner height accomodates various sizes of beer kegs. Turbo Air Beer Dispenser model guarantees the utmost in cleanliness and long product life. It also adds a touch of style to the most refined setting.

Forced air cooling system
Fast cooling and balanced temperature throughout the cabinet.

High-density polyurethane insulation
The entire cabinet structure is foamed-in-place using high density, HCFC free polyurethane insulation.

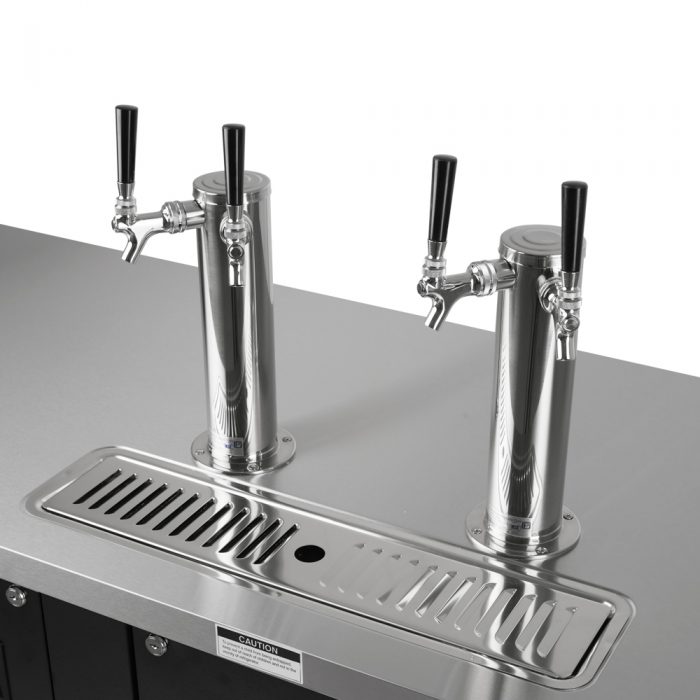

3″ diameter stainless steel insulated beer tower

Ergonomically designed doors
Customers’ fatigue fades away with easy grip handles and doors that open effortlessly. These features along with self-closing doors make this the ultimate choice in customer convenience.

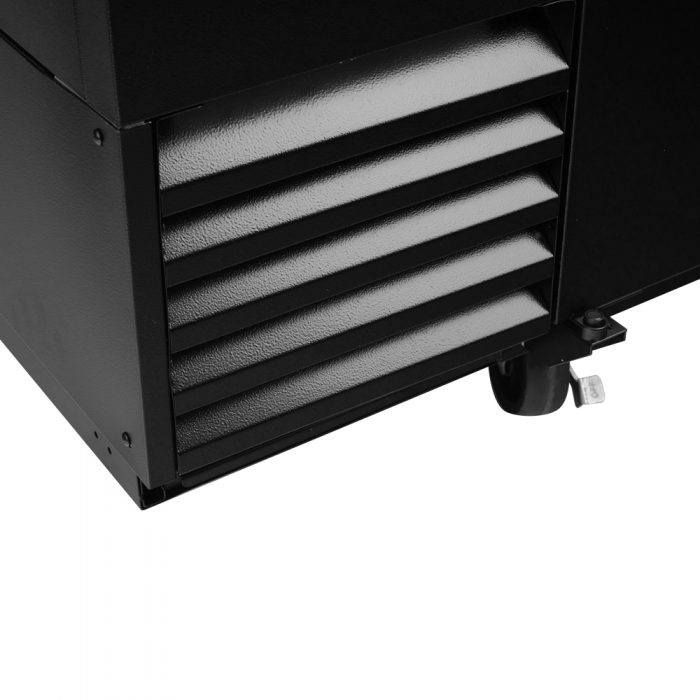

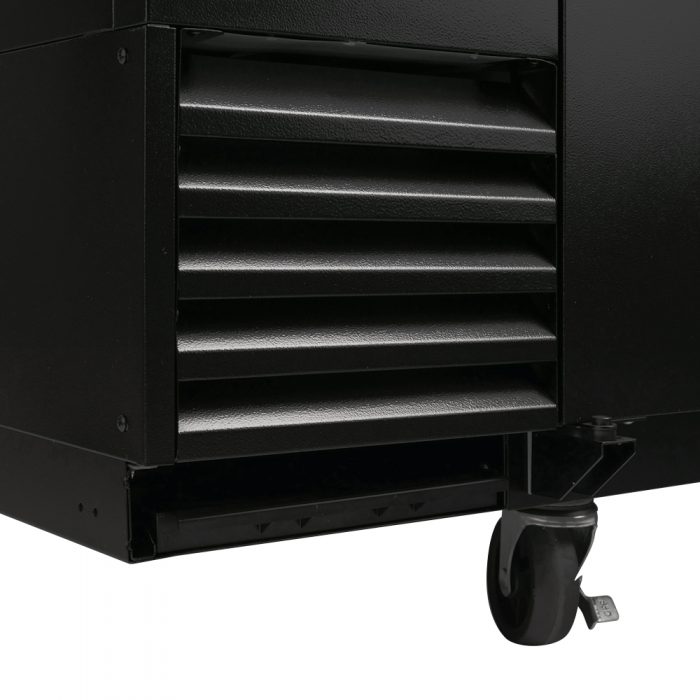

Side mount compressor unit

Comes standard with a four-way tapper manifold

Beer dispenser holds 33°F ~ 38°F for the best in beverage preservation

Standard Features
• Anti-corrosion coated evaporator
• Double faucet beer tower standard
• Door locks standard
• Self-contained system

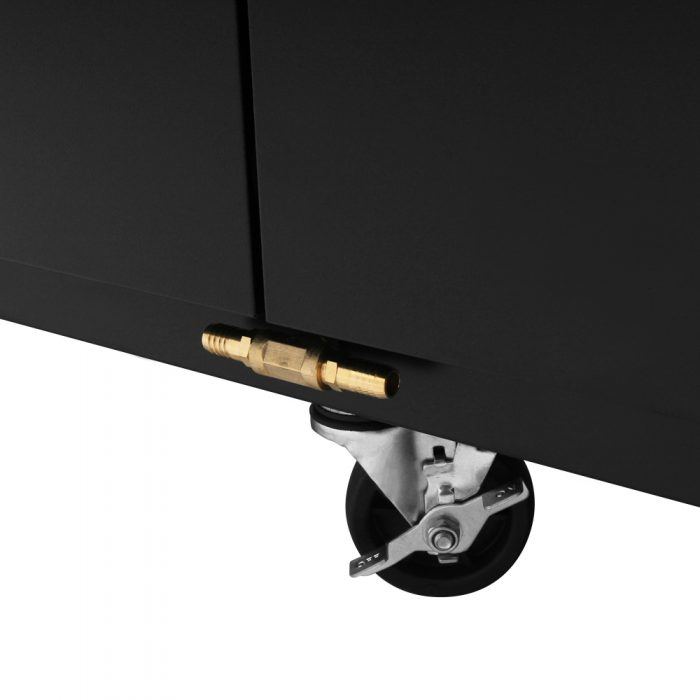

• 4” dia. swivel casters standard

Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and

Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm.

For more information, go to www.p65warnings.ca.gov.

nuts Parts & Accessories

Optional Accessories
• 1” caster, ½” diameter & 13 TPI: S28R813660 (non-brake)

• 2” caster for underbar series, ½” diameter: P0165B0100 (non-brake), P0165B0110 (w/ brake)
• 2.5″ caster: 30265H0100 (non-brake), 30265H0200 (w/ brake)
• 5” caster, ½” diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
• Leveling leg, ½” – 13 TPI x 1.54”: LFM1213566
• 6” adjustable stainless steel leg: P0121P0100
• Triple faucet draft tower: 153A-3
