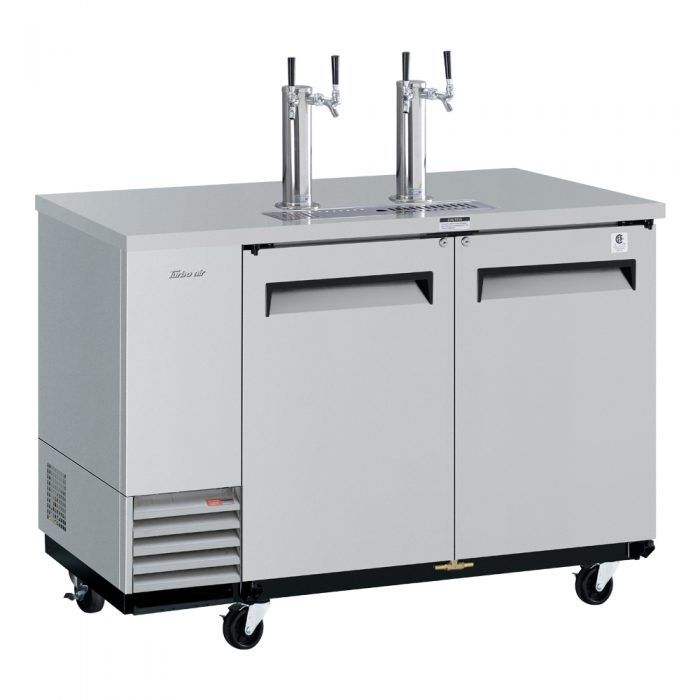

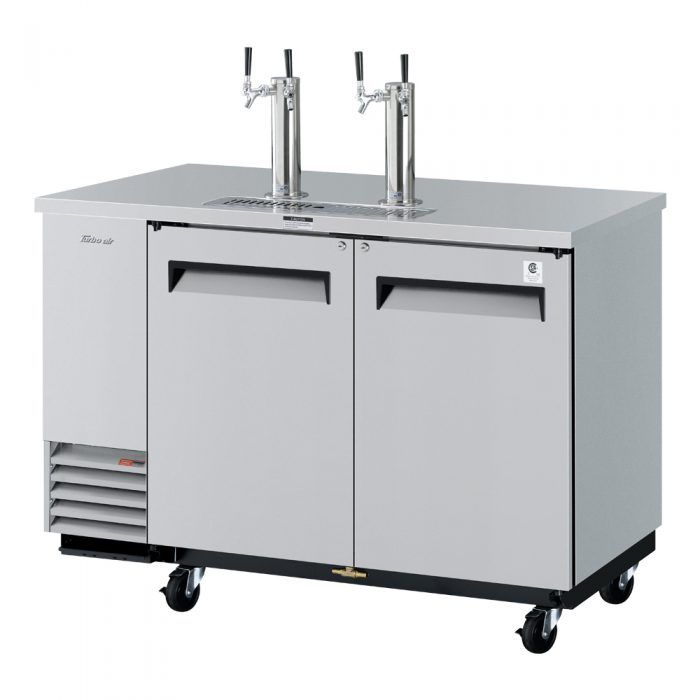

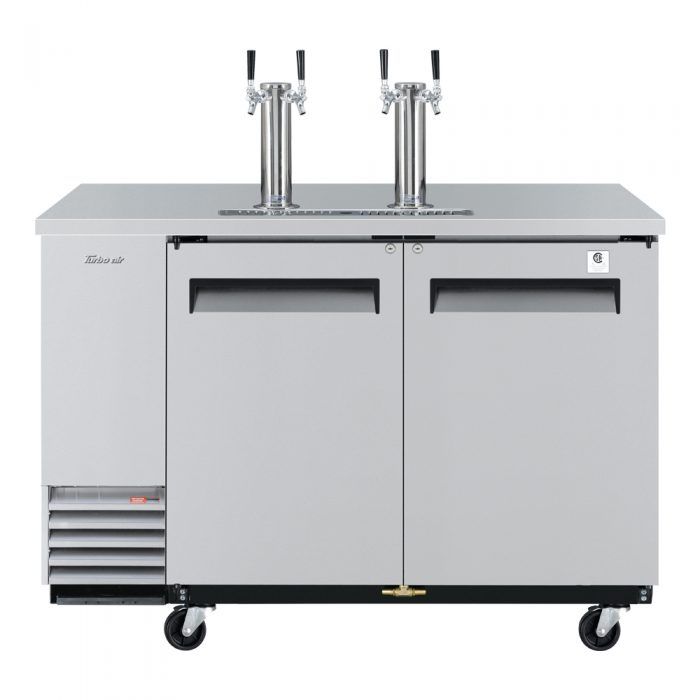

TBD-2SD-N6

Key Features

Super Deluxe Beer Dispenser, 58.75″ L, Easy-to-clean Air-filter equipped, (2) swing doors, Stainless steel countertop & exterior, Stainless steel inside walls & floor, Galvanized steel interior top, (2) 1/2 barrel capacity, 3″ dia. stainless steel insulated beer columns, Door locks, Recessed handles, LED interior lighting, Double faucet beer tower, Side mount, Front breathing, 4″ casters, 1/5 HP, 115v/60/1, 1.9 Amps, Cord with NEMA 5-15P, ETL-Sanitation, cETLus

Warranty

  • 3 Year Parts & Labor
  • Additional 4 Year Compressor

Documents

Self-Cleaning
Condenser Device

A fine mesh filter catches dust, while rotating brushes run daily to move dirt away from the condenser. This revolutionary device comes at no additional cost.

new-message Features

Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products inside. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.

Hydrocarbon refrigerants (R-600a)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Stainless steel cabinet construction
Super Deluxe (SD) models boast a stainless steel exterior (except galvanized steel back and bottom). SB models have an attractive wear-resistant black vinyl exterior. Heavy gauge stainless steel countertop is perfect for sanitation and durability. The interior is stainless steel except galvanized steel top. Spacious inside construction with 311/4” inner height accommodates various sizes of beer kegs.Turbo Air beer dispenser model guarantees the utmost in cleanliness and long product life. It also adds a touch of style to the most refined setting.

Forced air cooling system
Fast cooling and balanced temperature throughout the cabinet.

High-density polyurethane insulation
The entire cabinet structure is foamed-in-place using high density, HCFC free polyurethane insulation.

3″ diameter stainless steel insulated beer columns

Ergonomically designed doors
Customers’ fatigue fades away with easy grip handles and doors that open effortlessly. These features along with self-closing doors make this the ultimate choice in customer convenience.

Side mount compressor unit
By positioning the compressor on the side of the unit, refrigerators can now be serviced without being moved. Our innovative, front breathing feature also allows this model to provide high efficiency in narrow spaces.

Comes standard with a four-way tapper manifold

Beer dispenser holds 33°F ~ 38°F for the best in beverage preservation

Standard Features
• Anti-corrosion coated evaporator
• Double faucet beer tower standard
• Door locks standard
• Self-contained system
• 4” dia. swivel casters standard

Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and

Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm.

For more information, go to www.p65warnings.ca.gov.

nuts Parts & Accessories

Optional Accessories
• 1” caster, ½” diameter & 13 TPI: S28R813660 (non-brake)

• 2” caster for underbar series, ½” diameter: P0165B0100 (non-brake), P0165B0110 (w/ brake)
• 2.5″ caster: 30265H0100 (non-brake), 30265H0200 (w/ brake)
• 5” caster, ½” diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
• Leveling leg, ½” – 13 TPI x 1.54”: LFM1213566
• 6” adjustable stainless steel leg: P0121P0100
• Triple faucet draft tower: 153A-3
