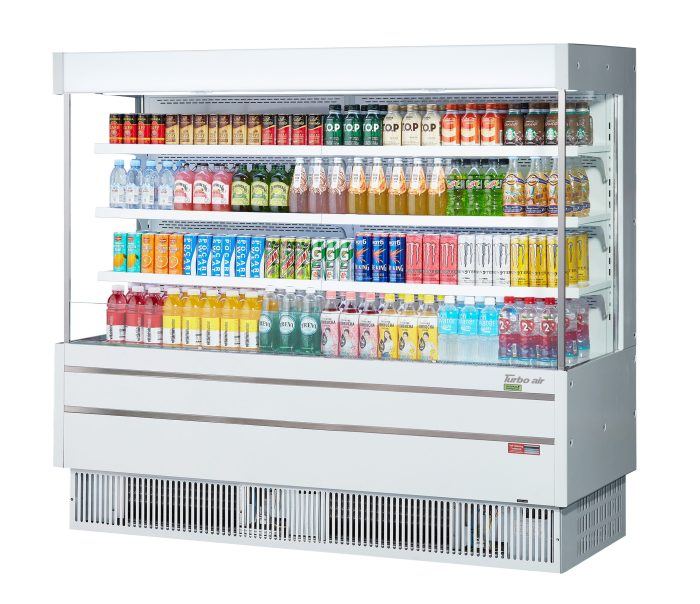

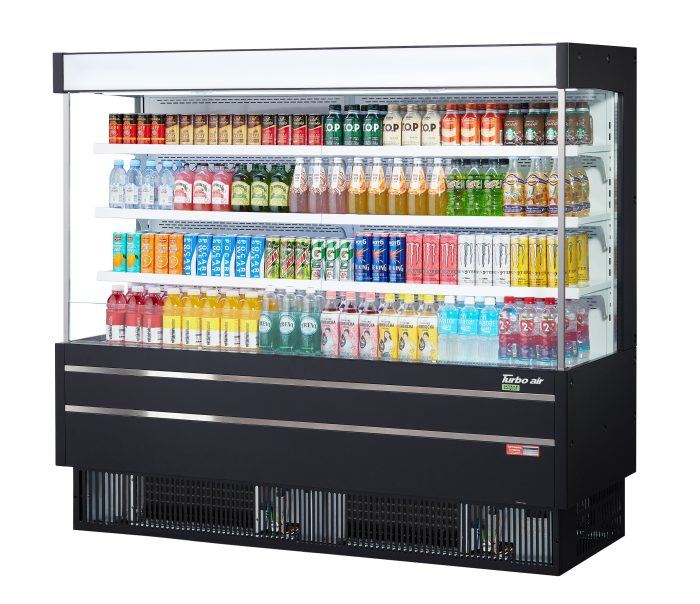

TOM-75MSEW(B)-N

Key Features

Vertical Air Curtain Open Display Merchandiser, medium-height, 20.9 cu. ft. capacity, 76-1/2″W x 25-3/4″D x 60-3/4″H, self-contained refrigeration with self-cleaning condenser, LED interior lighting, (6) adjustable shelves, night curtain, front air intake & rear air discharge, white interior, specify exterior color, R290 Hydrocarbon refrigerant, (2) 3/4 HP, 115v/60/1-ph, 15.5 amps, cord with NEMA 5-20P, cETLus, ETL-Sanitation (Contact sales for lead time)

Warranty

  • 2 Year Parts & Labor
  • Additional 3 Year Compressor

Documents

new-message Features

Self-cleaning condenser
The accumulation of dust in the condenser causes the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The self-cleaning condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.

Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Modern design
By harmonizing curvature and rigidness, our modern style product designs are user-friendly while maintaining the highest product visibility and aesthetics. The glass front shield optimize the merchandiser’s display effects of fresh salads, sandwiches, desserts and beverages.

Designed to enhance impulsive sales
Ideal for eye-catching displays and convenient access with fast service in high traffic area.

White coated galvanized steel interior

White coated galvanized steel solid shelves

LED interior lighting under each shelf

Standard back-guard improves airflow

Energy saving night curtain standard

Foamed with polyurethane, high-density cell insulation (CFC free)

Perforated interior back wall and top for improved airflow

Front air intake and rear air discharge

LED advertising panel

STANDARD FEATURES
• Simple plug-in installation
• Patented self-contained system, no plumbing required
• Solar powered digital thermometer
• Digital electronic thermostat with defrost control
• Bolt height adjustable up to 2-3/4”
• White and black colors come standard
** Lead time applies. Please contact your sales representative for more details to order.

Recommended operating conditions
TOM models are designed to operate in an environment where temperature & humidity do not exceed 75°F and 55% respectively. Units should not be installed near HVAC vents, fans or doorways that will disrupt the air curtain and compromise the function of the cabinet. Air curtain models will run most efficiently when completely loaded with product. When used as a built-in, required clearance for the rear is 4” and the top is 5”.

Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

nuts Parts & Accessories

OPTIONAL ACCESSORIES
• 1.6” caster: CAS16WBT00 (non-brake)
• 4” caster, ½” diameter & 13 TPI: G8F6500101 (non-brake), G8F6500201 (w/ brake)
• 6” leveling seismic leg (½”, 13 TPI): 30221M0700
• Price tag channel: P4000000ZK (36-1/2” L)
