TUF-48SD-D4-FB-N
Key Features

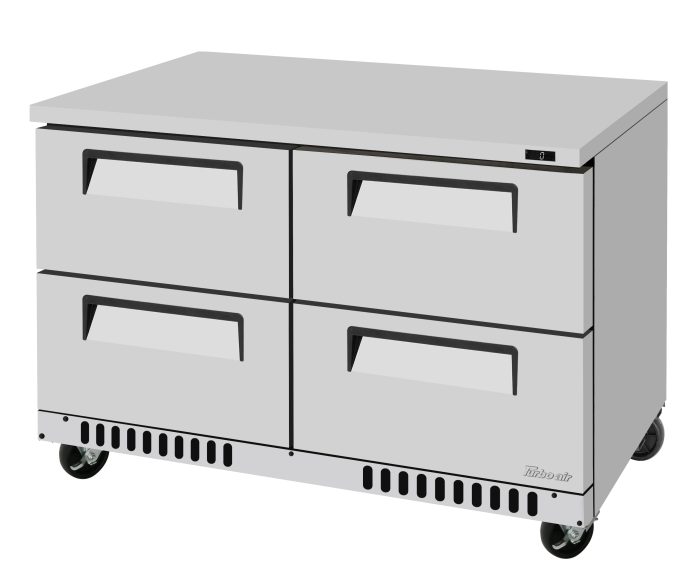

Super Deluxe Series Undercounter Feezer, Front Breathing airflow, two-section, 14.8 cu. ft., 48-1/4″W x 30″D x 30″H, (4) drawers, stainless steel interior & exterior (galvanized steel back & bottom), self-cleaning condenser equipped, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 8 amps, NEMA 5-15P, cETLus, ETL-Sanitation (contact sales for lead time)
Warranty
- 5 Year Parts & Labor
- 7 Year Compressor Warranty
Documents
Features
Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products inside. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Digital temperature control & monitor system
Keeps food products safe by maintaining constant temperatures. External digital display allows for easy monitoring.
Front Breathing airflow
Front Breathing airflow is designed to draw in air and discharge from the front, allowing units to run at high efficiency in tight spaces and eliminates the need for surrounding clearances.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
High-density polyurethane insulation
he entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.
Stainless steel cabinet construction
The Turbo Air Super Deluxe model boasts a stainless steel interior and exterior (galvanized steel back & bottom). It guarantees the utmost in cleanliness and long product life. The Super Deluxe adds a touch of style to the most refined setting.
Sturdy, clean stainless steel shelving
Shelves are the most important part of cleanliness as they come in direct contact with food. After a while, PVC coated wire shelves may peel, rust and lead to unsanitary conditions. Only the Turbo Air Super Deluxe series uniquely provides stainless steel shelving.
Each drawer accommodates up to 6” deep, six (6) 1/6 size pans. And each bottom drawer accommodates up to 6″ deep (4) four 1/6 size pans (drawer pans not included)
Freezer holds -10°F ~ 0°F for the best in frozen food preservation
STANDARD FEATURES
• Anti-corrosion coated evaporator
• Self-contained system
• 4″ dia. swivel casters with locks on the front set
Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
Parts & Accessories
OPTIONAL ACCESSORIES
• 1” caster, ½” diameter & 13 TPI: S28R813660 (non-brake)
• 2.5″ caster, ½” diameter & 13 TPI: 30265H0100 (non-brake), 30265H0200 (w/ brake)
• 5″ caster, ½” diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
• Leveling leg, ½” – 13 TPI x 1.54”: LFM1213566
• 6″ ABS plastic leg: 30221M0200
• 6″ stainless steel leg: 30221M0600
• Back splash guard: TU-48B
• Single overshelf, stainless steel, 48-3/8″ W: TSOS-4S
