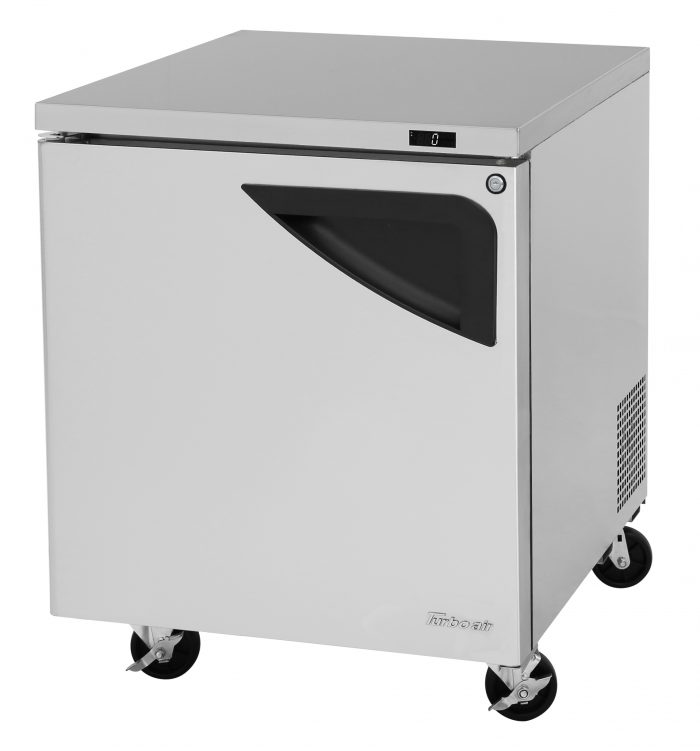

TUF-28SD-FB-N
Key Features
Super Deluxe Series Undercounter Freezer, Front Breathing airflow, one-section, 11.1 cu. ft., 27-1/2″W x 30″D x 30-1/2″H, (1) solid door, stainless steel interior & exterior (galvanized steel back & bottom), (1) stainless steel wire shelf, self-cleaning condenser equipped, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 4.5 amps, NEMA 5-15P, cETLus, ETL-Sanitation (contact sales for lead time)
Warranty
- 5 Year Parts & Labor
- 7 Year Compressor Warranty
Documents
Features
Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Digital temperature control & monitor system
Keeps food products safe by maintaining constant temperatures. External digital display allows for easy monitoring.
Front Breathing airflow
Front Breathing airflow is designed to draw in air and discharge from the front, allowing units to run at high efficiency in tight spaces and eliminates the need for surrounding clearances.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Stainless steel cabinet construction
The Turbo Air Super Deluxe model boasts a stainless steel interior and exterior (galvanized steel back & bottom). It guarantees the utmost in cleanliness and long product life. The Super Deluxe can add a touch of style to the most refined setting.
LED interior lighting & fan control
Energy efficient LED lighting lights every corner, making items easy to find. Fan control function automatically shuts off the fan when the door is open, which prevents hot air from being drawn in, thus maintaining the cool inner temperature.
Sturdy, clean stainless steel shelving
Shelves are the most important part of cleanliness as they come in direct contact with food. After a while, PVC coated wire shelves may peel, rust and lead to unsanitary conditions. Only the Turbo Air Super Deluxe series uniquely provides stainless steel shelving.
Ergonomically designed doors
Customers’ fatigue fades away with easy grip handles and doors that open effortlessly. These features along with self-closing doors make this the ultimate choice in customer convenience. ABS sheet door liners resist water condensation with thermal efficiency.
High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.
Freezer holds -10°F ~ 0°F for the best in frozen food preservation
STANDARD FEATURES
• Anti-corrosion coated evaporator
• Self-contained system
• 4″ dia. swivel casters with locks on the front set
• Door locks
Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
Parts & Accessories
OPTIONAL ACCESSORIES
• Low Profile casters kit
(4) 1” caster (Roller Type): S28R813660
(1) 3/8”H drain pan: SDP1Q000
(1) Brackets for drain pan: (Left) SDP1Q000-BL, (Right) SDP1Q000-BR
• 5″ caster, ½” diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
• 6″ ABS plastic leg: 30221M0200
• 6″ stainless steel leg: 30221M0600
• Back splash guard: TU-28B
