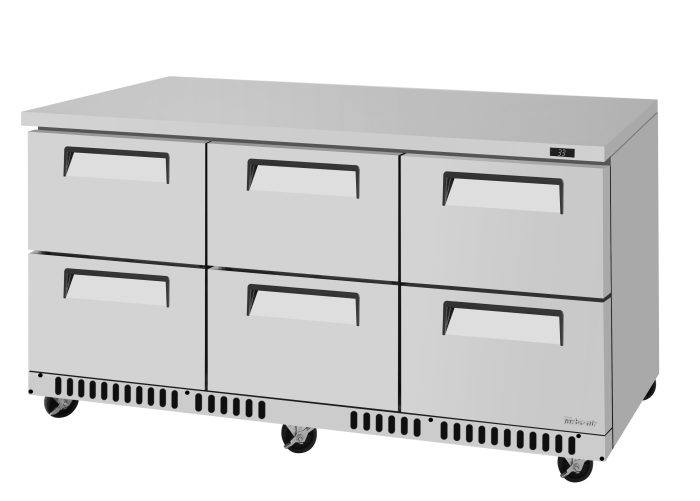

Super Deluxe Series Undercounter Refrigerator, Front Breathing airflow, three-section, 17.6 cu. ft., 72-5/8″W x 30″D x 30″H, (6) drawers, stainless steel interior & exterior (galvanized steel back & bottom), self-cleaning condenser equipped, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 9.9 amps, NEMA 5-15P, cETLus, ETL-Sanitation (contact sales for lead time)
- 5 Year Parts & Labor
- 7 Year Compressor Warranty
Self-cleaning condenser device
The accumulation of dust in the condenser causes the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The self-cleaning condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Digital temperature control & monitor system
Keeps food products safe by maintaining constant temperatures. External digital display allows for easy monitoring.
Front Breathing airflow
Front Breathing airflow is designed to draw in air and discharge from the front, allowing units to run at high efficiency in tight spaces and eliminates the need for surrounding clearances.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Stainless steel cabinet construction
The Turbo Air Super Deluxe model boasts a stainless steel interior and exterior (galvanized steel back & bottom). It guarantees the utmost in cleanliness and long product life. The Super Deluxe can add a touch of style to the most refined setting.
High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.
Each top drawer accommodates up to 6″ deep, (2) two 1/3 size pans with (2) two 1/6 size pans or (6) six 1/6 size pans. And each bottom drawer accommodates up to 6″ deep, (2) two 1/3 size pans or (4) four 1/6 size pans (drawer pans not included)
Refrigerator holds 33°F ~ 38°F for the best in food preservation
• Anti-corrosion coated evaporator
• Self-contained system
• 4″ dia. swivel casters with locks on the front set
Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
Parts & Accessories
• 1” caster, ½” diameter & 13 TPI: S28R813660 (non-brake)
• 2.5″ caster, ½” diameter & 13 TPI: 30265H0100 (non-brake), 30265H0200 (w/ brake)
• 5″ caster, ½” diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
• Leveling leg, ½” – 13 TPI x 1.54”: LFM1213566
• 6″ ABS plastic leg: 30221M0200
• 6″ stainless steel leg: 30221M0600
• Single overshelf, stainless steel, 72-13/16” W: TSOS-6S
