TCBE-36SDR-E-N6
Key Features

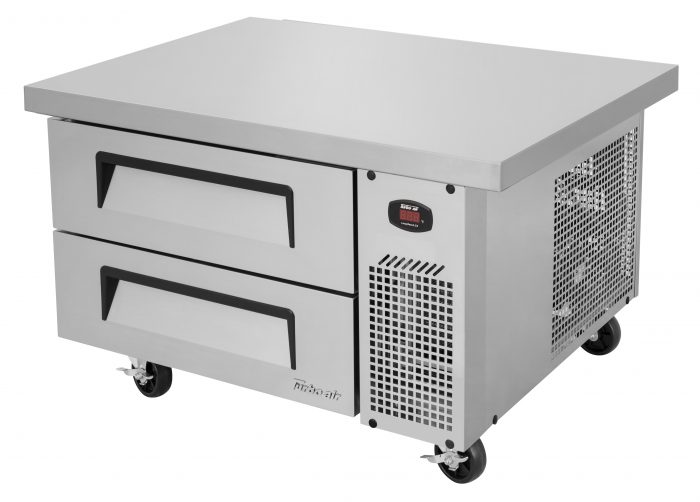

Super Deluxe Extended Top Chef Base Refrigerator, 41-5/8″W x 32″D x 20-1/4″H, 4.98 cu. ft., side mounted self-contained refrigeration system, self-cleaning condenser device, (2) durable drawers with recessed handles, accommodates pans up to 6″ deep, capacity: (1) full size pan & (3) 1/6 size pans per drawer (NOT included), 16 ga. stainless steel one-piece reinforced insulated top, stainless steel front & sides, digital temperature display, R600a Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 2.8 amps, NEMA 5-15P, cETLus, ETL-Sanitation
Warranty
- 5 Year Parts & Labor
- 7 Year Compressor Warranty
Documents
Features

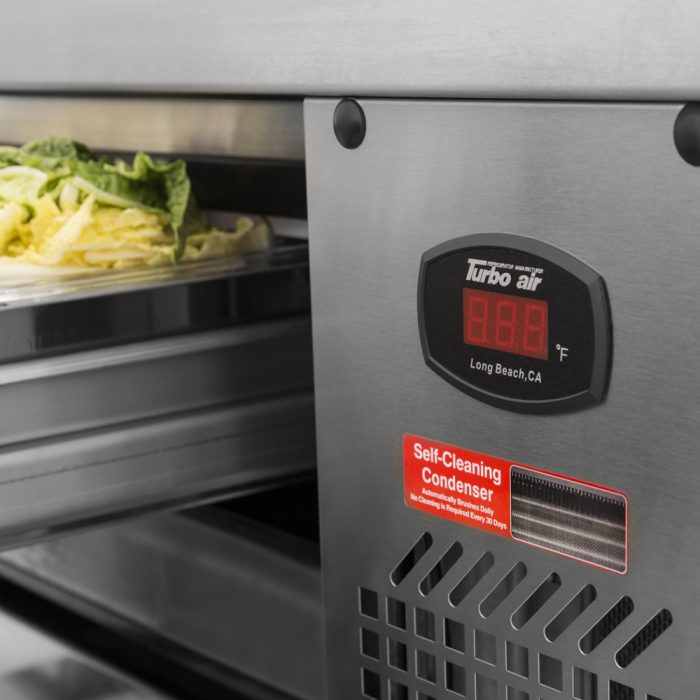

Self-cleaning condenser
The accumulation of dust in the condenser causes the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The self-cleaning condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Strong body and durable construction
Built with heavy duty 16 gauges stainless steel Chef Base top is manufactured of one-piece reinforced stainless steel to ensure durability.
Countertops
TCBE-36SDR-E-N6/48/52SDR-E-N supports up to 788 pounds of equipment. TCBE-72/82SDR-E-N supports up to 1,192 pounds of equipment.
Hydrocarbon refrigerants (R-600a)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Side mount compressor unit
Compressors positioned on the side of the units makes servicing our units easy. Our front air intake feature also allows this model to be highly efficient in narrow spaces.
High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.
Digital temperature display on front panel
Each drawer accommodates up to 6” deep one (1) full size and three (3) 1/6 size pans (drawer pans not included)
Top is insulated to eliminate heat transfer to the interior of cabinet

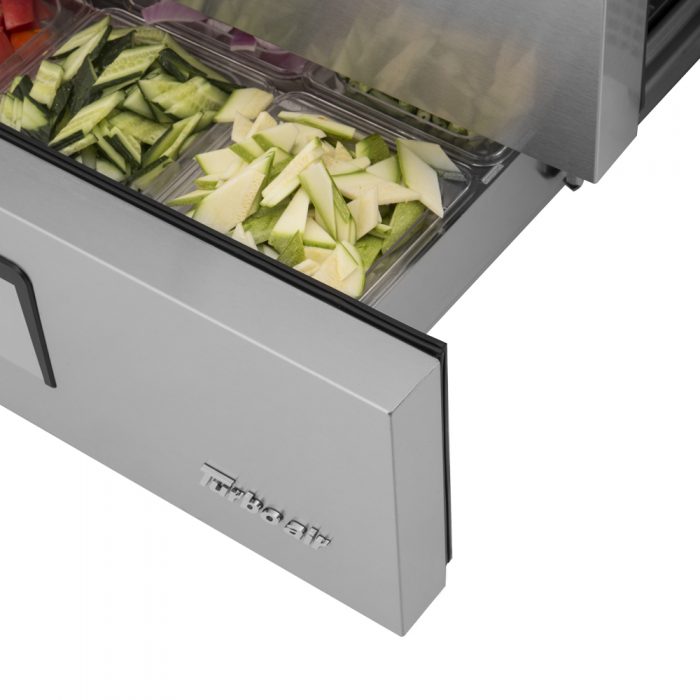

Durable stainless steel drawers
Refrigerator holds 33°F ~ 38°F for the best in food preservation
STANDARD FEATURES
• Anti-corrosion coated evaporator
• Self-contained system
• 4” dia. swivel casters standard
Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
Parts & Accessories
OPTIONAL ACCESSORIES
• 6” stainless steel leg: 30221M0600
