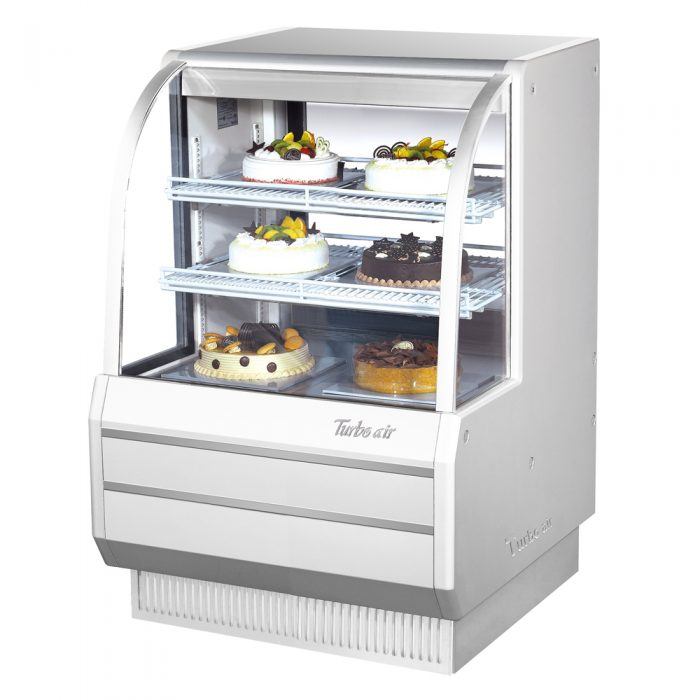

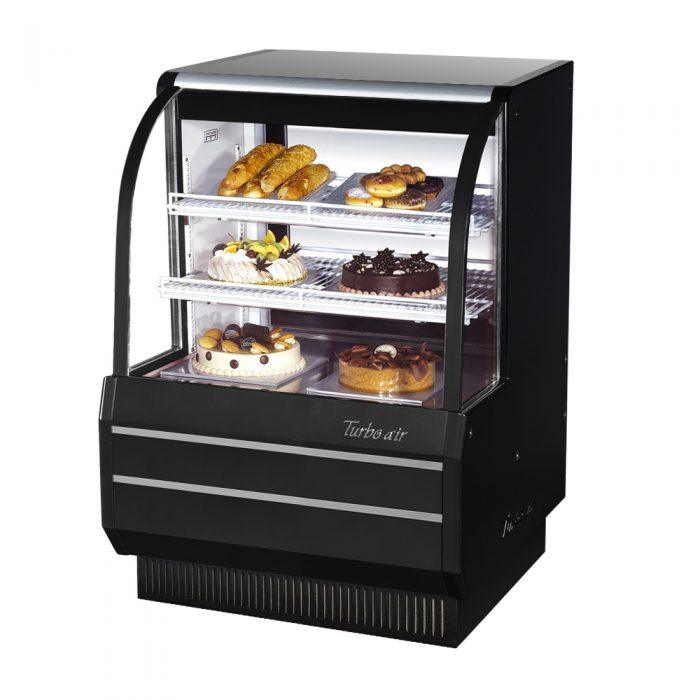

TCGB-36-W(B)-N

Key Features

Curved glass bakery case-refrigerated, Self-Cleaning Condenser equipped, Safety shielded LED lighting, Solar powered digital thermometer, Digital electronic thermostat with defrost control, Tempered Low-E coated double pane glass, Stainless steel floor, Anti-corrosion coated evaporator, White and black colors come standard, 11.8 cu.ft., 115v/60/1, NEMA 5-15P, 7.5 Amps, 1/3 HP, cETLus, ETL

Warranty

  • 2 Year Parts & Labor
  • Additional 3 Year Compressor

Documents

new-message Features

Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products inside. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.

Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Attractive, elegant, glass sided Euro design
Curved tempered front glass and minimal frame provide full product visibility  to optimize display effects. Its elegant contemporary euro design and luxurious colored case will not only enhance any store atmosphere but also will keep product presentation at its best and most beautiful.

High-density polyurethane insulation
The entire cabinet structure is foamed-in-place using high density, CFC free polyurethane insulation.

Low-E coated double pane glass is tempered for safety

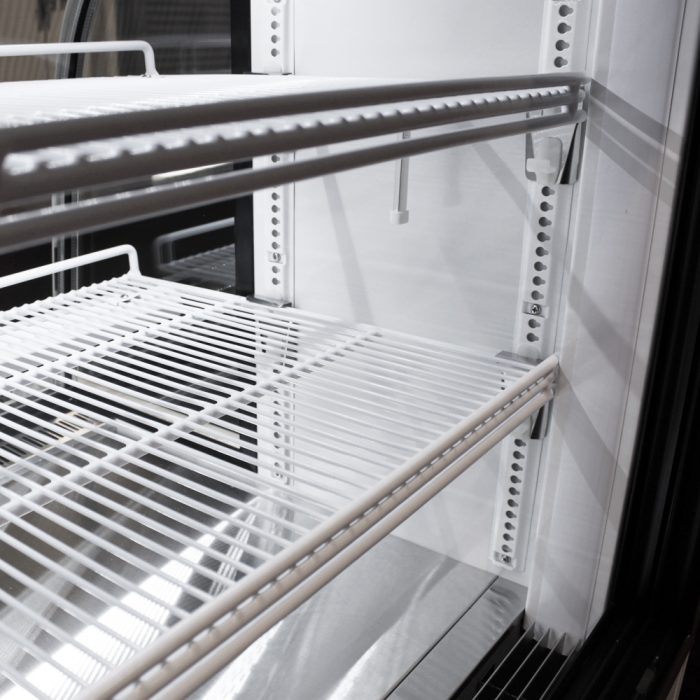

Heavy duty, white PE coated wire shelves

Cantilever wired shelves adjustable up and down, tilted

Stainless steel floor and airflow grille

Sliding rear doors for product loading & unloading

Rear access to compressor compartment for quick and easy service

Refrigerated bakery case holds avg. 33°F ~ 41°F for fresher bakery products

STANDARD FEATURES
• Self-contained system, no plumbing required
• Safety shielded LED interior lighting
• Solar powered digital thermometer
• Digital electronic thermostat with defrost control
• Two color options available: White (W), black (B)

Recommended operating conditions
TCGB models are designed to operate in an environment where temperature & humidity do not exceed 75°F and 55% respectively. Units should not be installed near HVAC vents, fans or doorways that will disrupt the air curtain and compromise the function of the cabinet. Air curtain models will run most efficiently when completely loaded with product.

Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

nuts Parts & Accessories

OPTIONAL ACCESSORIES
• 1.6” caster: CAS16WBT00 (non-brake)
• 4” caster, ½” diameter & 13 TPI: 30265L0400 (non-brake), 30265L0300 (w/ brake)
• 6″ leveling seismic leg (½”, 13 TPI): 30221M0700
