TGF-23F(B)-N

Key Features

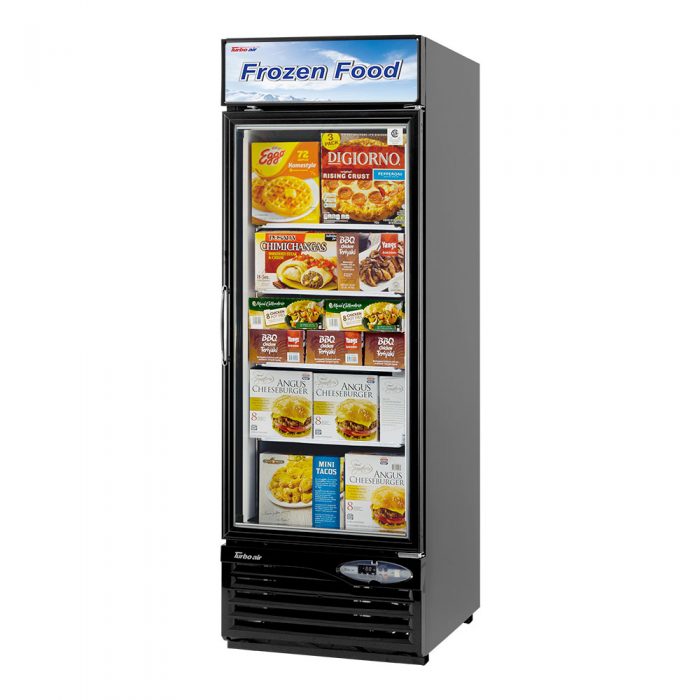

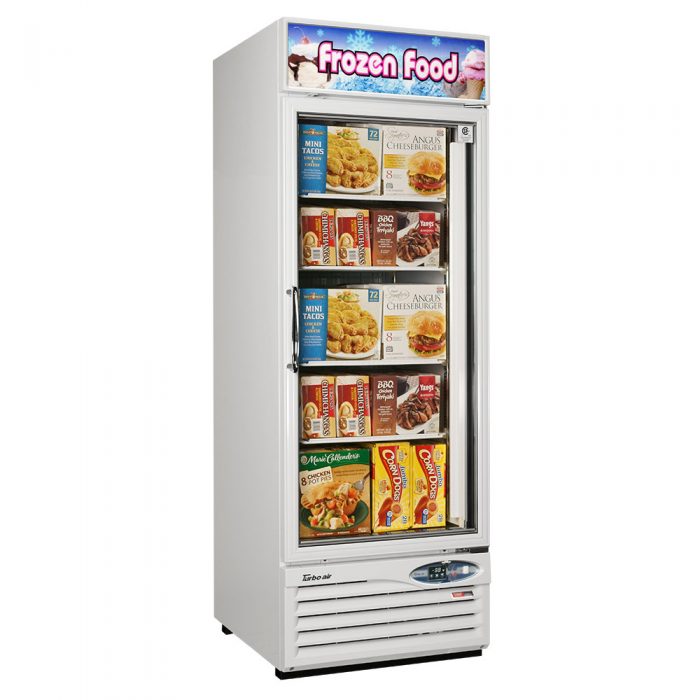

Swing Door Freezer, One-section, 17.7 cu. ft., Self-contained, (1) triple pane heated glass door, LED lighting, (4) adjustable PE coated wire shelves, Digital temperature controller, Door opening alarm, Self-diagnostic monitoring system, Automatic fan motor delays, Turbo freeze, Smart defrost system, LED sign panel, Solenoid valve, White & black color come standard, Bottom mount compressor, 2/3 HP, 115v/60/1, 5.3 Amps, Cord with NEMA 5-15P, ETL-Sanitation, cETLus

Warranty

  • 2 Year Parts & Labor
  • Additional 3 Year Compressor

Documents

new-message Features

Hydrocarbon Refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

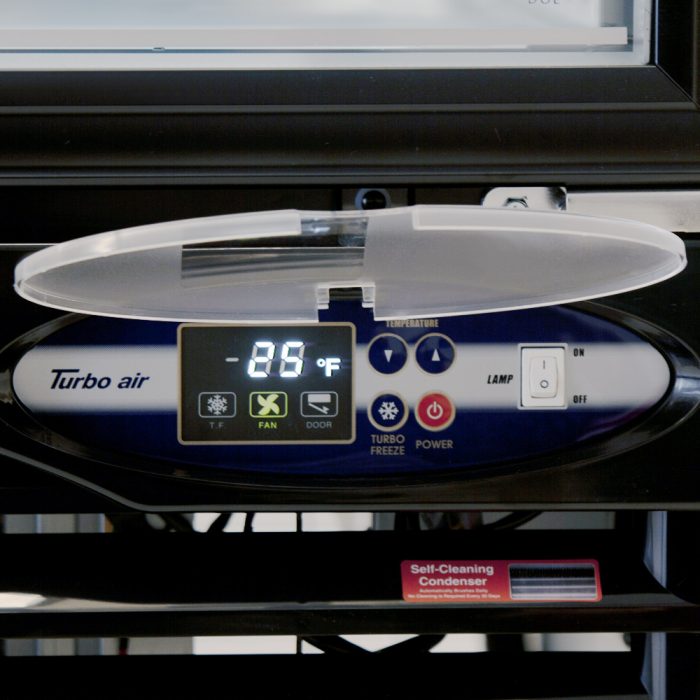

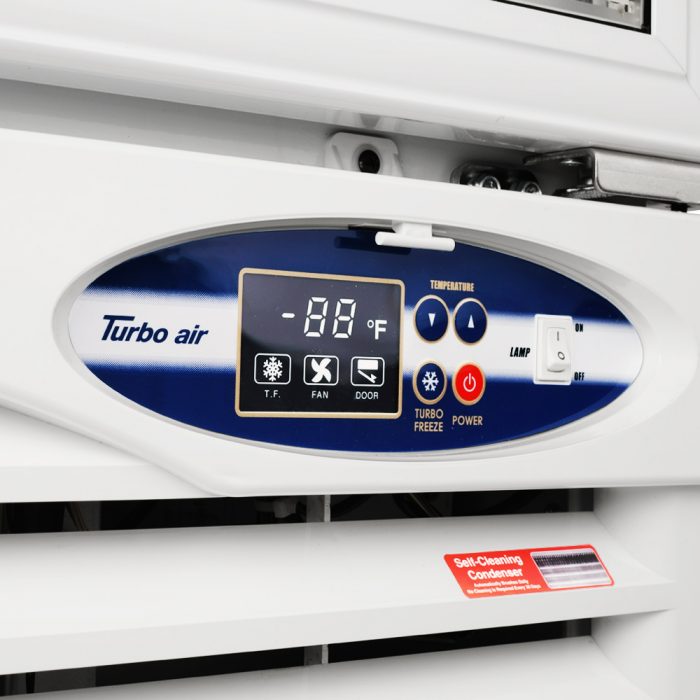

Digital temperature control & monitor system
• Keep food products safe by maintaining constant temperatures.
• Alarms that sound when doors are not sealed shut; protect against food spoilage that originates from cold air leaks.
• Digital display allows for easy monitoring.
• Programs interpret the condition of refrigeration systems by self-diagnosis.
• Rapid cool-down function (Turbo Freeze).
• Smart defrost system will defrost as needed.
• Automatic evaporator fan motor delays.

LED advertising panel
LED lighting offers 5 times longer lasting life than fluorescents and conserves energy as well.

Triple pane heated glass doors
Equipped with unique triple-pane heated glass doors which enhance energy efficiency by preventing heat transfers and minimizing condensation. Lightweight door construction reduces door maintenance, bushing wear, and facilitates smooth door opening.

High-density polyurethane insulation
The entire cabinet structure is foamed-in-place using high density, HCFC free polyurethane insulation.

Ergonomically designed doors
Customers’ fatigue fades away with easy grip handles and doors that open effortlessly. These features along with self-closing doors make this the ultimate choice in customer convenience.

Adjustable, heavy duty, PE (polyethylene) coated wire shelves

LED interior lighting

Freezer holds -10°F ~ 5°F for the best in frozen food preservation

STANDARD FEATURES
• Anti-corrosion coated evaporator
• Magnetic door gaskets
• White and black color come standard

Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

nuts Parts & Accessories

OPTIONAL ACCESSORIES

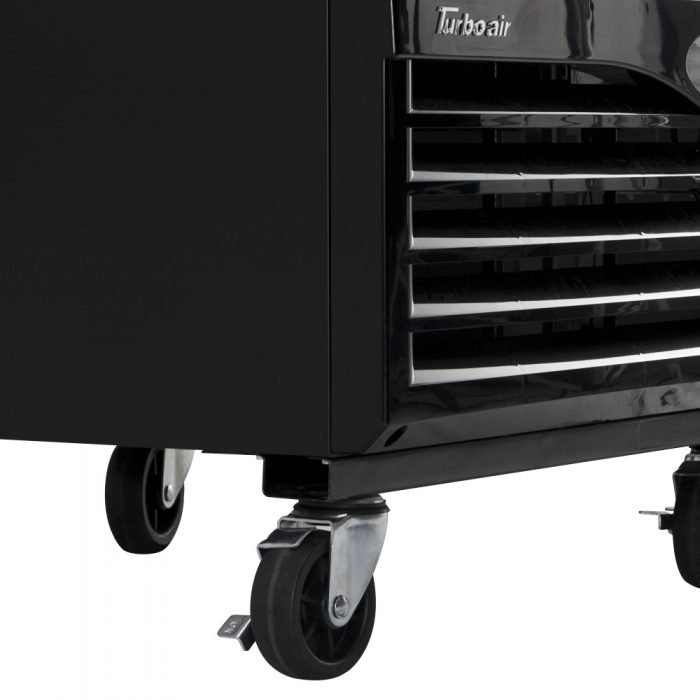

• 4” casters, ½” diameter & 13 TPI: G8F6500101 (non-brake), G8F6500201 (w/ brake)
• Additional PE coated wire shelf: 30278R0102 (LED unit)
• Price tag channel: P0122K5100 (20 1/4”L)
• Sign panel (blank): 30242R1001
