TGIM-49W-N

Key Features

Ice Merchandiser, Two sections, Bottom mount, 39.88 cu.ft., Door open alarm, LED interior lighting & canopy, (2) triple pane heated glass doors with handle, Exterior digital thermometer & controller, Door opening alarm, Self-diagnostic monitoring system, Automatic fan motor delays, Turbo freeze, Smart defrost system, LED sign panel, LED interior lighting, 3/4 HP, 6.7 Amps, 115/60/1, NEMA-5-20P, cETLus, ETL-Sanitation

Warranty

  • 2 Year Parts & Labor
  • Additional 3 Year Compressor

Documents

new-message Features

Self-Cleaning Condenser (patented)
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products inside. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.

Hydrocarbon Refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

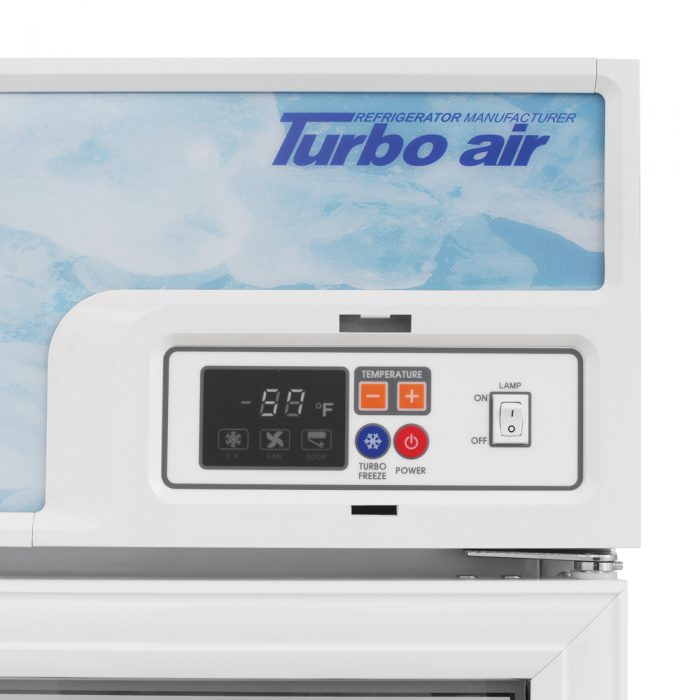

Digital temperature control & monitor system
• Keep food products safe by maintaining constant temperatures.
• Alarms that sound when doors are not sealed shut; protect against food spoilage that originates from cold air leaks.
• Digital display allows for easy monitoring.
• Programs interpret the condition of refrigeration systems by self-diagnosis.
• Rapid cool-down function (Turbo Freeze).
• Smart defrost system will defrost as needed.

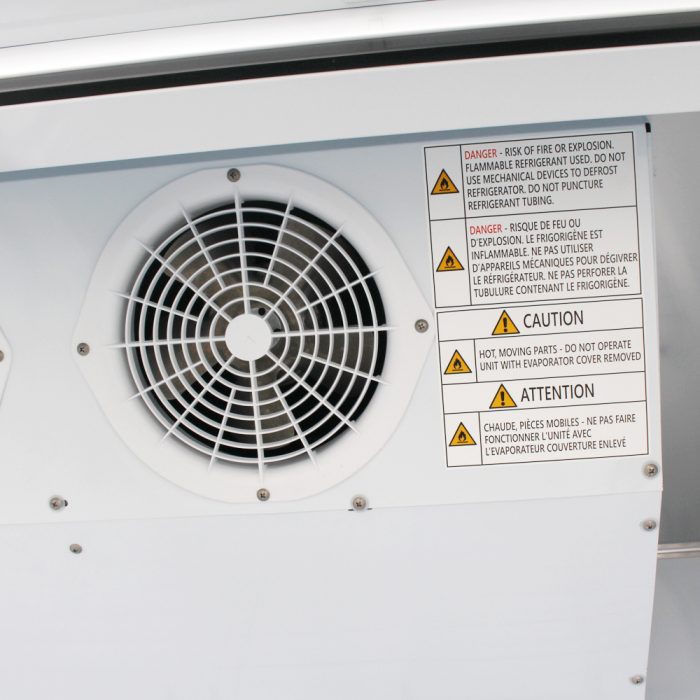

• Automatic evaporator fan motor delays.

Ice stays frozen melt even in hot climates
Turbo Air ice merchandisers are based on a freezer system that is adjusted to the ideal temperature range for bagged ice storage, whereas our competitors use refrigerator based systems. This system maintains an avg. temperature of 12°F or lower, which eliminates the problem of ice melting during hot weather conditions.

Triple pane heated glass doors
Equipped with unique triple-pane heated glass doors which enhance  energy efficiency by preventing heat transfers and minimizing condensation. Lightweight door construction reduces door maintenance, bushing wear,  and facilitates smooth door opening.

LED advertising panel
LED lighting offers 5 times longer lasting life than fluorescents and conserves energy as well.

No electrical cabinet heater is needed
Electrical heaters in freezers operate 24/7 in order to prevent water flow to the cabinet surface. This causes unnecessary energy consumption,
and sometimes is the reason behind overheating. Instead of frame heaters, Turbo Air freezers harness the heat produced by the compressor during
its condensing stage, eliminating any unnecessary energy consumption as well as providing the most efficient freezer performance available.

High-density polyurethane insulation
The entire cabinet structure is foamed-in-place using high density, HCFC free polyurethane insulation.

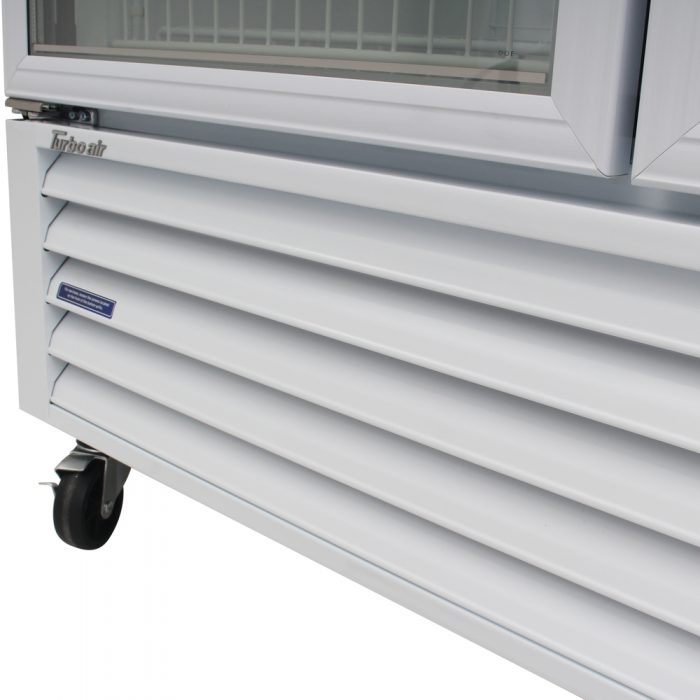

Bottom mount compressor unit
Turbo Air’s bottom mount compressor allows easier access for service and extra storage space above. In addition, the lower area provides a cooler and less greasy operating environment which results in reduced compressor running time.

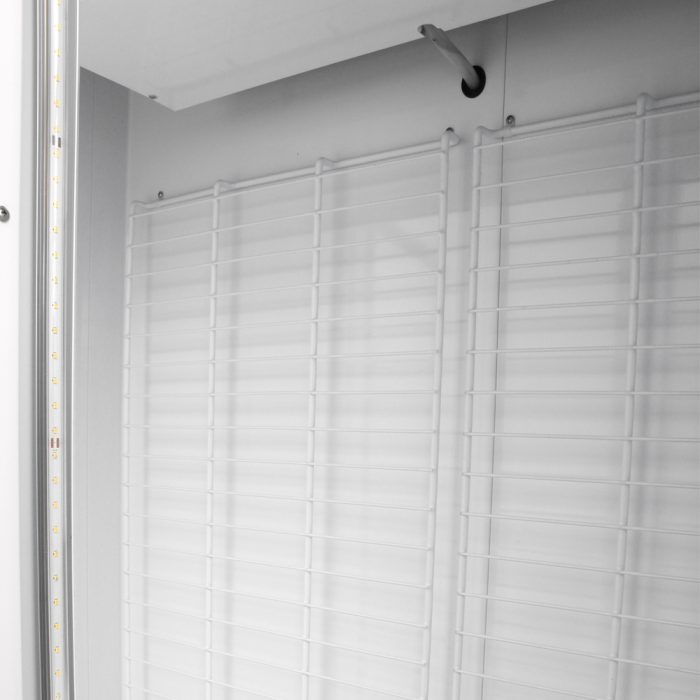

LED interior lighting

Freezer holds 10°F ~ 15°F for the best in bagged ice storage

STANDARD FEATURES
• Anti-corrosion coated evaporator
• Magnetic door gaskets

Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

nuts Parts & Accessories

OPTIONAL ACCESSORIES
• 4” caster, ½” diameter & 13 TPI: 30265L0400 (non-brake), 30265L0300 (w/ brake)
• Sign panel (blank): P0145A1300-B
