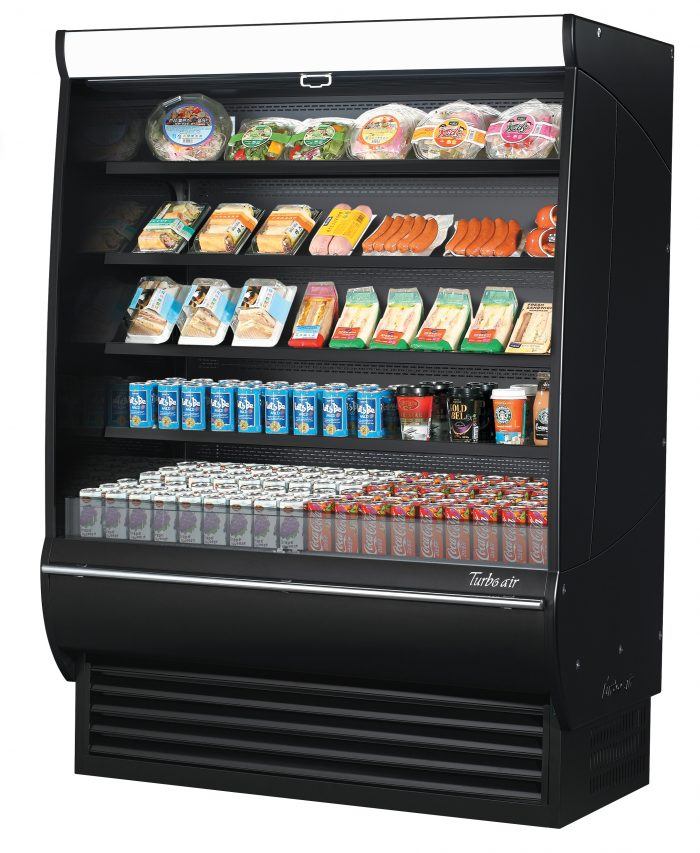

TOM-60DXB-SP(-A)-N

Key Features

Open display merchandiser, Vertical Extra Deep – Solid Side Panel, 60″ length, Self-cleaning condenser device, LED interior lighting under each shelf, LED advertising top panel, Open front, Tempered glass front shield, Solid side walls, Self-contained, Plug-in installation, Front air intake & rear air discharge, Energy saving night curtain standard, Black exterior, Stainless steel interior (-SP) or Black coated interior with mirrored sides option (-SP-A), 29.4 cu.ft., 115v/60/1, 15.5 Amps, 3/4 x 2 HP, NEMA 5-20P, cETLus, ETL-Sanitation

Warranty

  • 2 Year Parts & Labor
  • Additional 3 Year Compressor

Documents

new-message Features

Self-cleaning condenser device
The accumulation of dust in the condenser causes the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The self-cleaning condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.

Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Interior materials available in two standards
SP: stainless steel interior for sanitary purposes.
SP-A: black coated interior with mirrored sides for maximized display effects.

Modern design
By integrating great contours with durable structures, our modern style product designs are user-friendly while maintaining the highest product visibility and aesthetics. Safety reinforced tempered glass front shield optimizes the merchandiser’s display effects of fresh salads, sandwiches, desserts and beverages. Its elegant contemporary euro design will enhance any store application. Ideal for eye-catching displays and convenient access with fast service in high traffic areas.

Solid side panels used to ensure durability

Standard back-guard improves airflow

Energy saving night curtain standard

Optional security cover available

Perforated interior back wall & top for improved air flow

Foamed with polyurethane, high-density cell insulation (CFC free)

Front air intake and rear air discharge

STANDARD FEATURES
• Simple plug-in installation
• Patented self-contained system, no plumbing required
• Standard color comes in black only
• LED interior lighting

Recommended operating conditions
TOM models are designed to operate in an environment where temperature & humidity do not exceed 75°F and 55°F respectively. Units should not be reinstalled near HVAC vents, fans, or doorways that will disrupt the air curtain and compromise the function of the cabinet. Air curtain models will run most efficiently when completely loaded with product. When used as a built-in, required clearance for the rear is 4” and the top is 5”.

Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

nuts Parts & Accessories

OPTIONAL ACCESSORIES
• 1.6” caster: CAS16WBT00 (non-brake)
• 4” caster, ½” diameter & 13 TPI: G8F6500101 (non-brake), G8F6500201 (w/ brake)
• 6″ leveling seismic leg (½”, 13 TPI): 30221M0700
• Security cover: SC-60-DXB, SCM-60-DXB, SCS-60-DX
• Price tag channel: P60DX000ZK (57”L)
