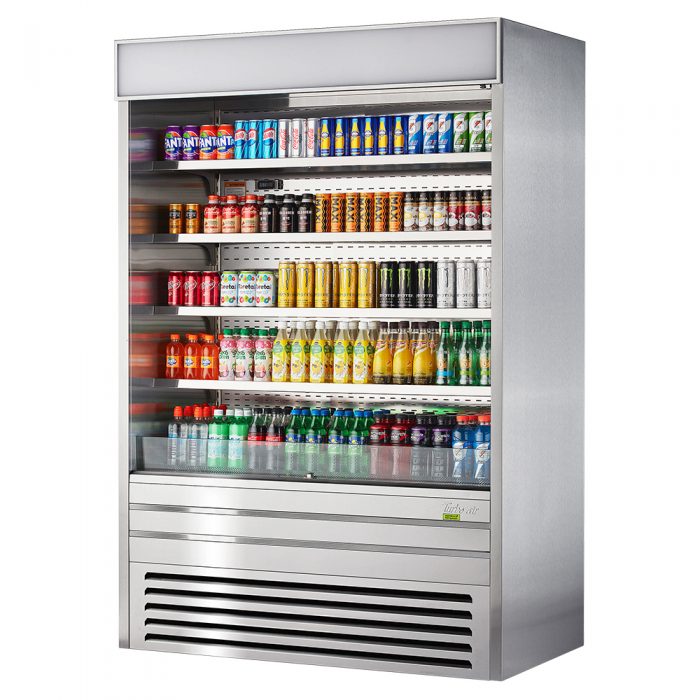

TOM-60ES-N

Key Features

Open display merchandiser, Vertical air curtain, 60″ length, Stainless steel exterior and interior, Self-Cleaning Condenser equipped, Hydrocarbon refrigerants (R-290), Modern design to enhance impulsive sales, Energy saving night curtain standard, Standard back-guard improves airflow, High-density cell insulation (CFC free), Perforated interior back wall and top for improved airflow, Front air intake and rear air discharge, 115V/60/1, NEMA 5-20P, 15.5 Amp, 3/4 x 2 HP, 30.6 cu. ft., CSA, cCSAus

Warranty

  • 2 Year Parts & Labor
  • Additional 3 Year Compressor

Documents

new-message Features

Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.

Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Modern design
By harmonizing curvature and rigidness, our modern style product designs are user-friendly while maintaining the highest product visibility and aesthetics. The glass front shield optimize the merchandiser’s display effects of fresh salads, sandwiches, desserts and beverages.

Designed to enhance impulsive sales
Ideal for eye-catching displays and convenient access with fast service in high traffic area

Energy saving night curtain standard

Standard back-guard improves airflow

Foamed with polyurethane, high-density cell insulation (CFC free)



Perforated interior back wall & top for improved air flow

Front air intake and rear air discharge

Stainless steel exterior and interior

8 week lead time applies

Standard Features
• Simple plug-in installation
• Patented self-contained system, no plumbing required
• Solar powered digital thermometer
• Digital electronic thermostat with defrost control
• LED interior lighting
• 8 week lead time applies

Recommended operating conditions
TOM models are designed to operate in an environment where temperature & humidity do not exceed 75°F and 55°F respectively. Units should not be reinstalled near HVAC vents, fans, or doorways that will disrupt the air curtain and compromise the function of the cabinet. Air curtain models will run most efficiently when completely loaded with product. When used as a built-in, required clearance for the rear is 4” and the top is 5”.

Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and
Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, go to www.p65warnings.ca.gov.

nuts Parts & Accessories

Optional Accessories
• 1.6” caster: CAS16WBT00 (non-brake)
• 4” caster, ½” diameter & 13 TPI: G8F6500101 (non-brake), G8F6500201 (w/ brake)
• 6″ leveling seismic leg (½”, 13 TPI): 30221M0700
• Security cover: SC-60-E (White), SC-60-EB (Black), SCM-60-E (White), SCM-60-EB (Black), SCS-60-E
• Price tag channel: P60E0000ZK (56½”L)
