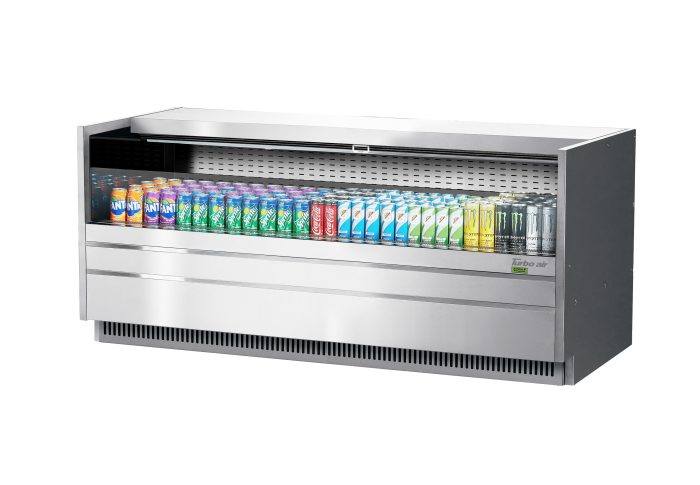

TOM-72UC-S-N

Key Features

Open Display Case, Drop in Type-Horizontal, Low profile with solid side panels, Self-Cleaning Condenser equipped, Hydrocarbon refrigerants (R-290), Modern design to enhance impulsive sales, Standard back-guard improves airflow, Stainless steel interior standard including back wall and deck pans, Perforated interior back wall & open top for improved airflow, Foamed with polyurethane, high-density cell insulation (CFC free), LED interior lighting, Solar powered digital themometer, Digital electronic thermostat with defrost control, Energy saving night curtain, 115V/60/1, NEMA 5-20P, 15 amp, 3/4 x 2 HP, 10.4 cu. ft., CSA Sanitation, cCSAus

Warranty

  • 2 Year Parts & Labor
  • Additional 3 Year Compressor

Documents

new-message Features

Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.

Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Modern design
By integrating great contours with durable structures, our modern style product designs are user-friendly while maintaining the highest product visibility and aesthetics. Safety reinforced tempered glass front shield optimizes the merchandiser’s display effects of fresh salads, sandwiches, desserts and beverages. Its elegant contemporary euro design will enhance any store application.

Designed to enhance impulsive sales
Ideal for eye-catching displays and convenient access with fast service in high traffic area.

Standard back-guard improves airflow

Stainless steel interior standard including back wall and deck pans

Perforated interior back wall & open top for improved airflow

Foamed with polyurethane, high-density cell insulation (CFC free)

LED interior lighting

Solar powered digital thermometer

Digital electronic thermostat with defrost control

Energy saving night curtain

Standard Features
• Simple plug-in installation
• No plumbing required
** Lead time applies. Please contact your sales representative for more details to order.

Recommended operating conditions
TOM models are designed to operate in an environment where temperature & humidity do not exceed 80°F and 55% respectively. Units should not be installed near HVAC vents, fans or doorways that will disrupt the air curtain and compromise the function of the cabinet. Air curtain models will run most efficiently when completely loaded with product. When used as a built-in, required clearance for the rear is 4” and 4-1/2” from the floor to the underside of the front panel.
