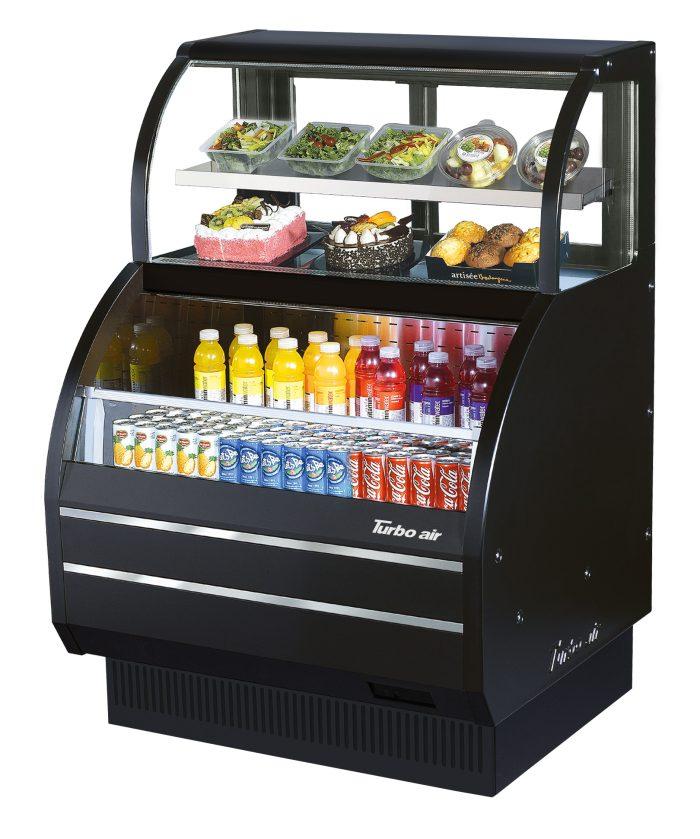

TOM-W-40SB-N
Key Features
Open Display Merchandiser Combination Case with Refrigerated Top Shelf Combination Case, 38-7/8″W x 34-1/8″D x 56-3/8″H, 4.2 top/6.4 bottom cu. ft. capacity, tempered curved front glass, (2) stainless steel shelves, LED interior lighting, black exterior with anti-rust coating, stainless steel interior, front air intake & rear air discharge, self-contained system, self-cleaning condenser, no plumbing required, R290 Hydrocarbon refrigerant, 3/4 HP, 115v/60/1-ph, 7.3 amps, NEMA 5-15P, cETLus, ETL-Sanitation
Warranty
- 2 Year Parts & Labor
- Additional 3 Year Compressor
Documents
Features
Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Modern design
By integrating great contours with durable structures, our modern style product designs are user-friendly while maintaining the highest product visibility and aesthetics. Safety reinforced tempered glass front shield and top display case optimize the merchandiser’s display effects of fresh salads, sandwiches, desserts and beverages. Its elegant contemporary euro design will enhance any store application.
Designed to enhance impulsive sales
Ideal for eye-catching displays and convenient access with fast service in high traffic area.
Stainless steel interior standard including back wall and deck pans
Stainless steel solid shelves standard
Standard back-guard improves airflow
Foamed with polyurethane, high-density cell insulation (CFC free)
Perforated interior back wall and top for improved air flow
Front air intake and rear air discharge
STANDARD FEATURES
• Simple plug-in installation
• Patented self-contained system, no plumbing required
• Standard color comes in black only
• Solar powered digital thermometer
• Digital electronic thermostat with defrost control
• LED interior lighting
Recommended operating conditions
TOM models are designed to operate in an environment where temperature & humidity do not exceed 80°F and 55% respectively. Units should not be installed near HVAC vents, fans or doorways that will disrupt the air curtain and compromise the function of the cabinet. Air curtain models will run most efficiently when completely loaded with product. When used as a built-in, required clearance for the rear is 4” and the top is 5”.
Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
Parts & Accessories
OPTIONAL ACCESSORIES
• 1.6” caster: CAS16WBT00 (non-brake)
• 4” caster, ½” diameter & 13 TPI: 30265L0400 (non-brake), 30265L0300 (w/ brake)
• 6″ leveling seismic leg (½”, 13 TPI): 30221M0700
• White color option available (please allow 8 weeks lead time)
• Price tag channel: PW400000ZK (34¼”L)
* Night Cover (NCT) is not applicable to TOM-W models.
